СКУ: TM171VEVM4
EEV драйвер, автономен и Modbus
-
Brand
Schneider Electric
-
SIL according to IEC 61508
EV000494
-
Performance level according to EN ISO 13849-1
EV000494
-
Explosion safety category for dust
EV000494
-
Explosion safety category for gas
EV000494
-
Appendant operation agent (Ex ia)
FALSE
-
Appendant operation agent (Ex ib)
FALSE
-
Suitable for safety functions
FALSE
-
Redundancy
FALSE
-
Suitable for single-axis positioning
FALSE
-
Suitable for single-axis controller
FALSE
-
Suitable for multi-axis positioning
FALSE
-
Suitable for counting
FALSE
-
Suitable for weighing
FALSE
-
Suitable for temperature control
FALSE
-
Suitable for NC
FALSE
-
Suitable for SSI
FALSE
-
Suitable for welding control
FALSE
-
Suitable for pressure control
FALSE
-
Suitable for incremental data detection
FALSE
-
Suitable for electronic positioning
FALSE
-
Suitable for CNC
FALSE
-
Suitable for flux controller
FALSE
-
Suitable for flux measurement
FALSE
-
Suitable for flying saw
FALSE
-
Suitable for multi-axis control
FALSE
-
Suitable for path controller
FALSE
-
Suitable for cam controller
FALSE
-
Height
87
-
Depth
61.6
-
Width
70.2
-
Number of functions
1
-
Suitable for detection absolute value
TRUE

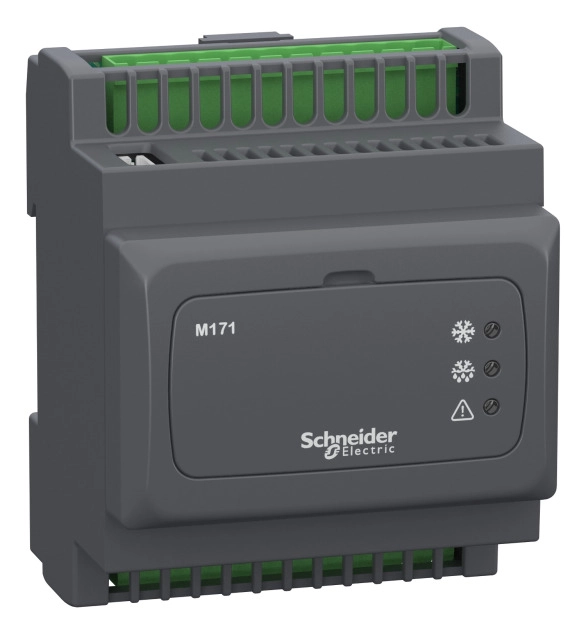

This electronic valve driver is part of Modicon M171/M172/M173 range, a control offer for HVAC/Pumping applications. It is a superheat EEVD for single valves. It has 2 digital inputs (volt-free), 4 analog inputs (2x NTC, 2x PT1000), 2 digital outputs (1 open collector, 1 SPST). It is designed to maintain the refrigerant superheat at the evaporator outlet around the desired value (superheat set point). Its rated supply voltage is24VAC/DC. It has 1 Modbus serial link - RS485 communication port. It measures 70.2mm wide, 87mm high, and 61.6mm deep, and weighs 0.190kg. It controls the flow of refrigerant entering a direct expansion evaporator. It has an 18-month warranty. It is compatible with controllers type M171, M172, and M173, a screw terminal block, and a battery backup device. It is sold in a 1-piece package. It is designed for 35mm rail mounting. Modicon M171/M172/M173 controllers are designed for complete automation solutions for HVAC and Pumping machines. Modicon M171/M172/M173 range is for OEMs and helps to maximize profitability or energy efficiency in HVAC applications.
