СКУ: CCT15495

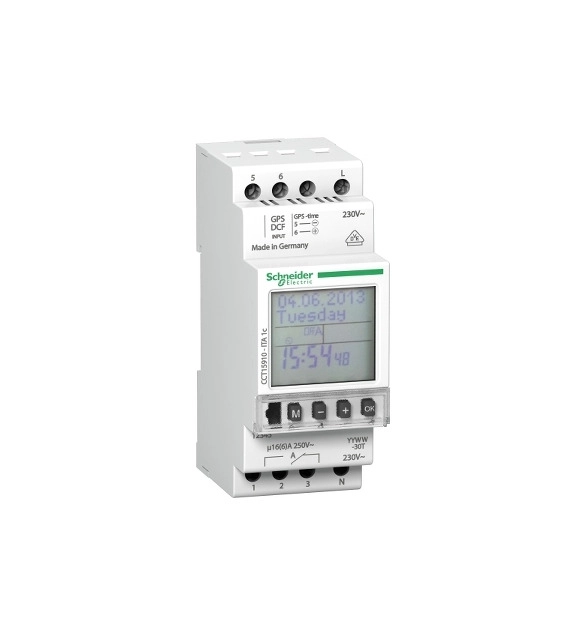

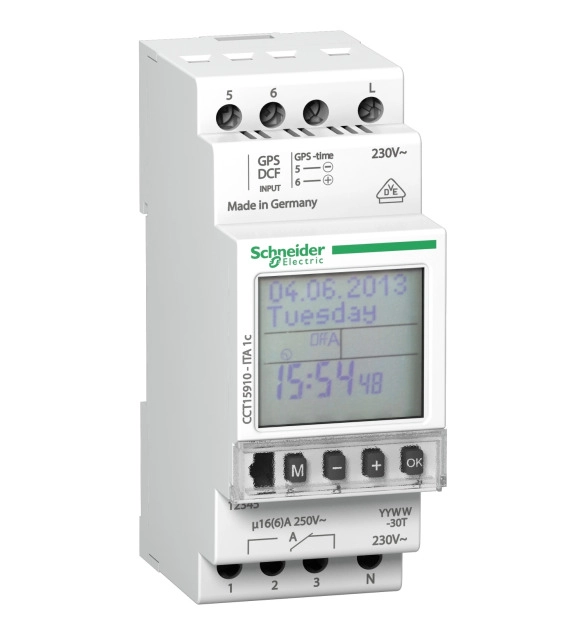

Acti 9 IC100kp+ 2C програмируем смарт превключвател
-
Brand
Schneider Electric
-
Degree of protection (IP)
EV006405
-
Mounting method
EV000242
-
Rated voltage
230
-
Width in number of modular spacings
2.5
-
Rated frequency
50
-
Max. load fluorescent lamp
2300
-
Max. load fluorescent lamp (Duo circuit)
2300
-
Rated switch current
16
-
Max. switching current (cos phi = 0.6)
10
-
Built-in depth
67
-
Protection class light sensor
EV000583
-
Max. load fluorescent lamp (parallel compensated)
730
-
Max. incandescent lamp load
2600
-
Mounting method light sensor
EV009508
-
Max. conductor length light sensor
50
-
Degree of protection (IP) light sensor
EV006420
-
Push button input
TRUE
-
With programmable overnight shutoff
TRUE
-
Adjustment range brightness value
1
IHP+ 1C 18 mm, 1 channel. Digital time switch with weekly program and 1 channel. For installation on DIN rails TH35 according to EN 60715. Functions: 84 memory locations. Interface for memory card. ON/OFF switching times. Impulse program. Cycle program. Switch preselection. ON/OFF permanent switching. Manual switching. External input: Push-button can be connected (external switch preselection, switch-off timer). Switch can be connected (permanent switching ON or OFF). Holiday program with timed setting. Switch-off timer. Reset option. Service function for monitoring maintenance intervals. Integrated operating hours counter. 2 random programs. Display lighting (can be switched off). Toggling summer time/winter time: automatic, can be deactivated, toggle rules for Europe, USA and other countries are already saved, customised toggle rule or toggling on a fixed date can be selected. PIN coding. Nominal voltage: AC 230-240 V, +10% / -15%, 50-60 Hz. Standby power: 0.4 W. Number of channels: 1. Contact: Make contact, phase-independent. Max. switching capacity: 16 A (at AC 250 V, cos Phi 1). 4 A (at AC 250 V, cos Phi 0.6). Incandescent lamp load: 2000 W. Halogen lamp load: 2000 W. Fluorescent lamp load: not compensated 2000 VA, series compensated 2000 VA, parallel compensated 1300 W (140 µF). Compact fluorescent lamp load (el. ballast) 300W. LED < 2 W: 55 W. LED 2-8 W: 180 W. Shortest switching time: 1 s. External inputs: 1. Connections: Screwless terminals for 2 lines each, wire or cord (with or without core end sleeve), 0.5 - 2.5 mm². Operating elements: 4 push-buttons to navigate menu, 1 reset button. Accuracy:
