СКУ: LC1E95N5

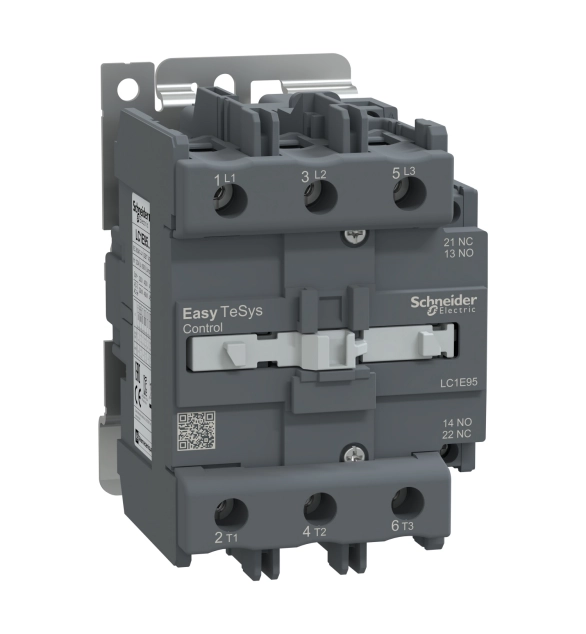

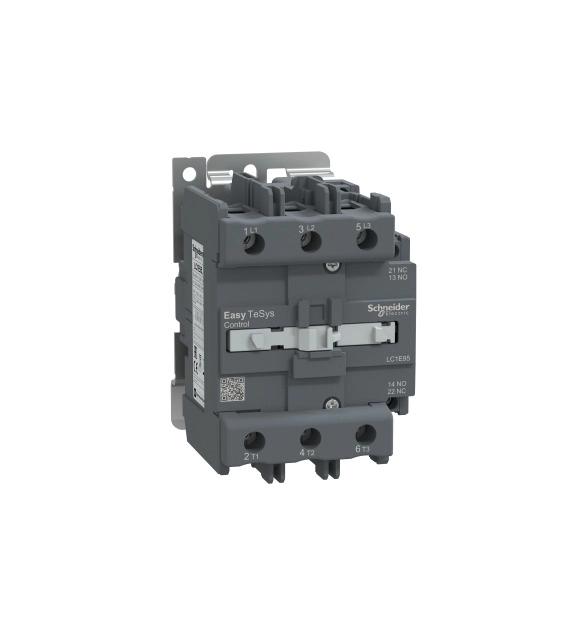

EasyPact TVS контактор 3P(3 NO) - AC-3 - <= 440 V 95A - 415 V AC бобина
-
Brand
Schneider Electric
-
Type of electrical connection of main circuit
EV000415
-
Voltage type for actuating
EV000460
-
Rated control supply voltage Us at AC 50HZ
48
-
Rated control supply voltage Us at AC 60HZ
48
-
Number of auxiliary contacts as normally closed contact
1
-
Number of auxiliary contacts as normally open contact
1
-
Rated operation power at AC-3, 400 V
45
-
Modular version
FALSE
-
Number of normally closed contacts as main contact
-
Number of normally open contacts as main contact
3
-
Rated operation current Ie at AC-1, 400 V
125
-
Rated operation current Ie at AC-3, 400 V
95
TeSys LE enclosed DOL starter for 3P non-reversing motor control up to 15kW at 400V. It includes a contactor LC1D with a 230V AC 50/60Hz control circuit. ON/OFF motor control by a green start push-button (I) and a red stop/reset push-button (O). Polycarbonate enclosure providing IP65 protection. Surface mounting enclosure with screw fixing, 2 knock-outs for cable glands on top and bottom. To operate, it must be fitted with a LRD thermal overload relay depending on the motor power (to be ordered separately). Conforming to IEC 60947-4-1, environmental compliant (RoHS/REACh).
