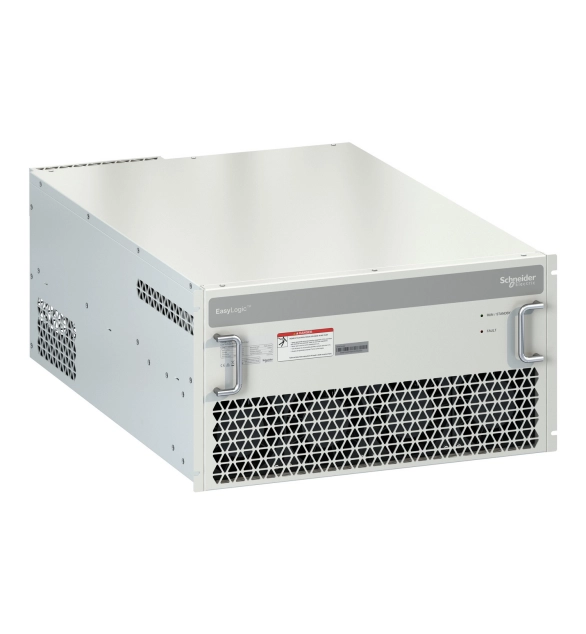

EasyLogic APF 150A 400V rack mount IP20

Schneider Electric EasyLogic APF is an active harmonic filter solution to to stabilize electrical network. It provides harmonic mitigation, power factor correction and mains load balancing. It is suitable for small-mid size commercial buildings and light industries. EasyLogic APF could help achieve good harmonic mitigation performance with total current harmonic distorsion below 5%. This rack-mounted APF module is configured for a 150A RMS output rating. It could be connected with voltage range from 240VAC to 460VAC. The enclosure is horizontally mounted with forced ventilation from front to back and cable entry from rear part. It fulfills EMC compliance with built-in EMC filter. The color of the product is light grey, type Pantone 1C. The size of the enclosure is 270mm in height, 530mm in width, 788mm in depth for a product weight of 55kg. It is designed to IEC 62477-1, EN 61000-6-2, EN 61000-6-4 Class A, IEEE Std 519-2014 and certified with CE, RCM. Up to 8 modules can be connected in parallel per set of CT. Any combination of different unit size is possible.  The Ingress Protection of this module is IP20. Reduce unscheduled downtime due to power quality problems thanks to the Active Harmonic Filters of EasyLogic APF.
