СКУ: 59490
E SWITCH 12KV 160MM 31 5KA 3S
-
Brand
Schneider Electric
-
Voltage type for actuating
EV000460
-
Rated control supply voltage Us at AC 50HZ
220
-
Rated control supply voltage Us at AC 60HZ
220
-
Error registration possible
FALSE
-
Indication of difference current
FALSE
-
Function
EV005827
-
With detachable clamps
FALSE
-
Rated frequency
50
-
Response value amperage 1
0.03
-
Max. permitted delay-on energization time
4.82
-
Number of contacts as change-over contact
2
-
Width
72
-
Type of electric connection
EV005755
-
Height
72
-
Depth
92
-
Number of contacts as normally open contact
-
Number of contacts as normally closed contact
-
Rated voltage
-
Min. adjustable delay-on energization time

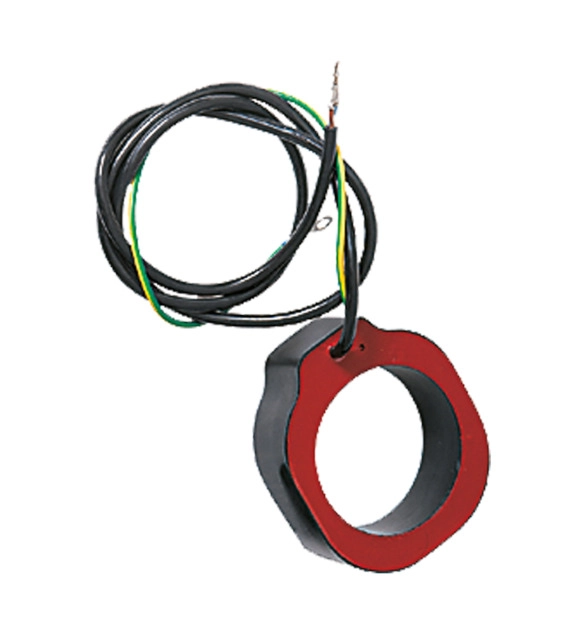

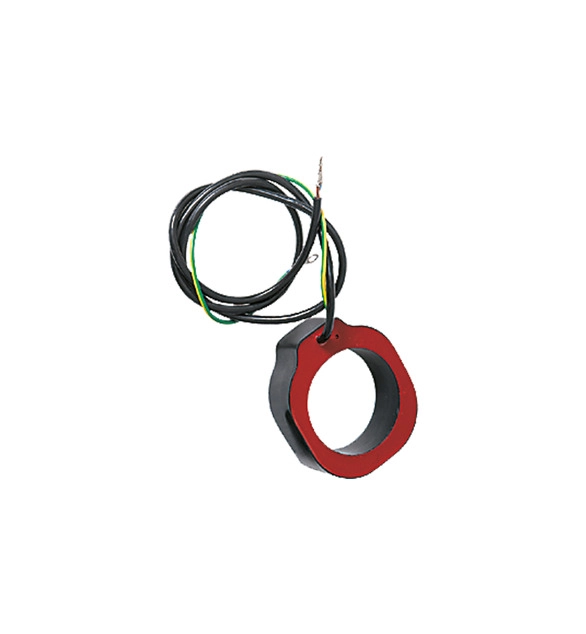

Sepam Series 20 is a protection relay range designed for standard distribution system applications. It provides 7 types of digital current or voltage protection for standard distribution systems, each one dedicated to a single application. The core balance current transformer CSH120 can be fixed on mounting plate. The permissible current for the device is 20 kA. Mechanical dimensions are 164 mm in height, 190 mm in width, 120 mm in diameter and 44 mm in depth.
