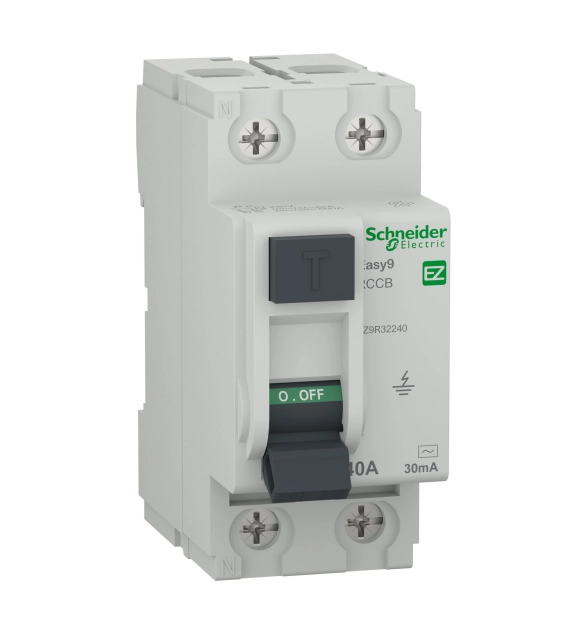

ДТЗ EASY9 XP 2P AC 30mA 40A

This Easy9 product is a residual current circuit breaker (RCCB). It is a 2P circuit breaker with 40A In rated current, 30mA earth leakage sensitivity, and AC type protection class. This product protects against electrical shock by direct or indirect contact. It also has protection against fire hazards due to persistent earth fault current. This product has position contact indication with fault tripping indication on the front panel by the position of the handle (0-I engraved). It is dedicated to residential and small commercial buildings. It complies with IEC 61008-1 standard. The (Im/IΔm) rated breaking and making short circuit capacity is 500A. The (Inc/IΔc) rated conditional short circuit current is 6000A. It has an electrical endurance going up to 4000 cycles and a mechanical endurance going up to 10000 cycles. The Ue rated operational voltage is up to 230VAC with an operating frequency of 50Hz. The Ui rated insulation voltage is up to 440V. It has a Uimp rated impulse withstand voltage of 4kV. It can be mounted on a DIN rail for modular installation. The width in 9mm pitches is 4. The dimensions are (W) 36mm x (H) 81mm x (D) 73mm. According to IEC 60529 standard, the IP degree of protection is IP20 and becomes IP40 once in a modular enclosure. The operating temperature is from -5°C to +60°C. The storage temperature is from -40°C to +85°C.
