СКУ: MTN663591

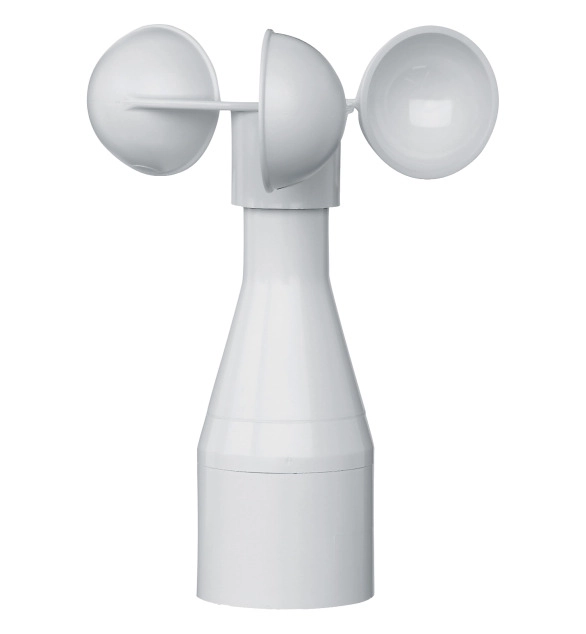

SCHNEIDER ELECTRIC Wind sensor with 0-10V interface, polar white
-
Brand
Schneider Electric
-
Colour
EV000202
-
Mounting method
EV000384
-
Degree of protection (IP)
EV006421
-
RAL-number (similar)
9010
-
Bus system KNX radio
FALSE
-
Bus system Powernet
FALSE
-
Bus system KNX
FALSE
-
Bus system LON
FALSE
-
With bus connection
FALSE
-
Weather station
FALSE
-
Bus system radio frequent
FALSE
-
Other bus systems
EV000494
-
With heating
FALSE
-
Acoustic signal
FALSE
-
With DCF77
FALSE
-
Analogue input
FALSE
-
Radio frequent bidirectional
FALSE
-
Model
EV002610
Wind sensor with 0-10 V interface. The wind sensor evaluates the wind speed and converts it into an analogue 0-10 V output voltage. For external installation and connection to the weather station REG-K/4-gang or the analogue input REG-K/4-gang. These two devices provide the supply voltage necessary to operate the sensor. Measuring range: 0.7-40 m/s, linear. Output: 0-10 V. External power supply:. Voltage: 24 V DC (18-32 V DC). Power consumption: approx. 12 mA. Type of protection: IP 65. Load: max. 60 m/s transient. Incoming cable: 3 m, LiYY 6 x 0.25 mm². Fixing method: Mounting bracket. Mounting position: vertical. Contents: With mounting bracket. Colour: polar white.
