СКУ: A9C15920

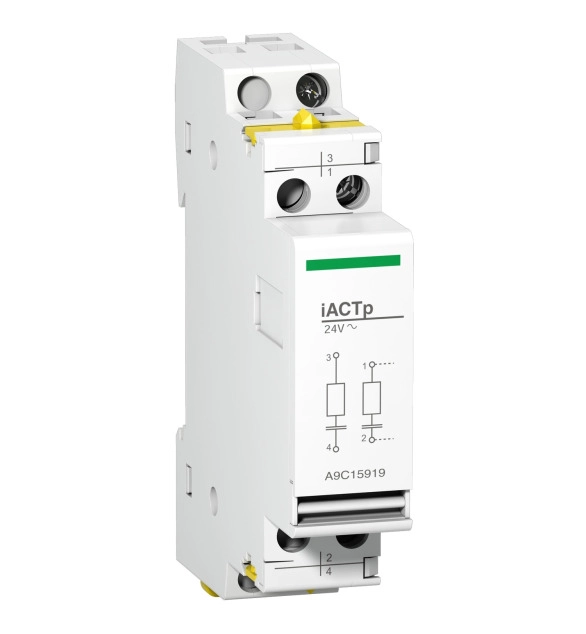

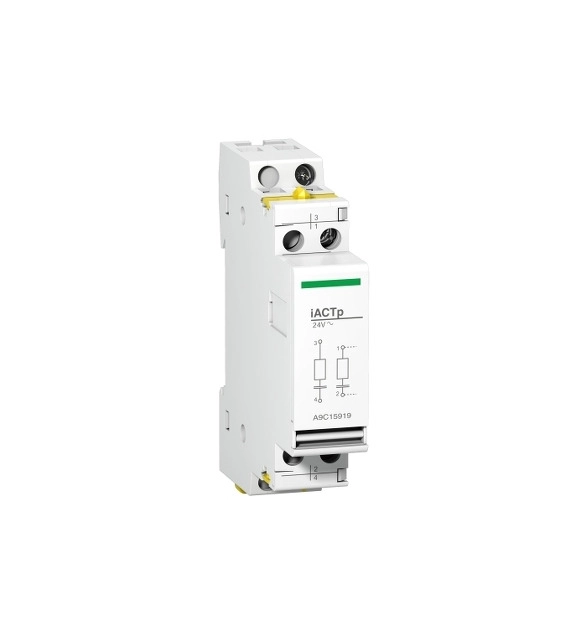

Допълнителна защита от пренапрежение Acti 9 iACTp 220...240 V AC
-
Brand
Schneider Electric
-
Degree of protection (IP)
EV006405
-
Mounting method
EV000242
-
Width in number of modular spacings
8
-
Rated voltage
230
-
Voltage type
EV000460
-
Number of contacts as normally open contact
-
Number of contacts as change-over contact
-
Number of contacts as normally closed contact
3
-
Built-in depth
67
-
Rated current (control contacts)
1
-
Rated current Iu
5
-
Just-operate current
5
-
Max. switching voltage (control contacts)
250
This Acti9 iCT is a modular contactor. It is a 4P remote control device with 4 normally open contact. The In rated current is 100A for AC-7a. The Ue rated operational voltage is 400VAC. The Uc control voltage is 220VAC to 240VAC. This device could be used for control circuits. This device could be used for HVAC system applications. This product is compliant with EN/IEC 61095 standard. Electrical endurance goes up to 30000 cycles for AC-7A. The maximum switching operations is 100 per day. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 4kV. Pollution degree is 2. It is DIN rail mountable. Its width is 12 pitches of 9mm. The product color is white (RAL9003). The dimensions are (W) 85mm x (H) 108mm x (D) 60mm. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is from -5°C to 60 °C. The storage temperature is from -40°C to 70°C.
