СКУ: GS1AF
Допълнителен контакт 2XOF 50A250A
-
Brand
Schneider Electric
-
Type of electrical connection of main circuit
EV000415
-
Version as emergency stop installation
FALSE
-
Rated permanent current Iu
63
-
Number of poles
3
-
Version as safety switch
FALSE
-
Degree of protection (IP), front side
EV006405
-
Motor drive integrated
FALSE
-
Suitable for floor mounting
FALSE
-
Motor drive optional
FALSE
-
Rated operation power at AC-23, 400 V
30
-
Version as main switch
TRUE
-
Suitable for front mounting
FALSE
-
Cable entry
EV000154
-
Type of control element
EV005987
-
Suitable for busbar mounting
TRUE
-
Conditioned rated short-circuit current Iq
100
-
Max. rated operation voltage Ue AC
750
-
Equipped with connectors
FALSE
-
With error protection
FALSE
-
Position control element
EV000154
-
Rated short-time withstand current lcw
100
-
Suitable for fuses
EV003991

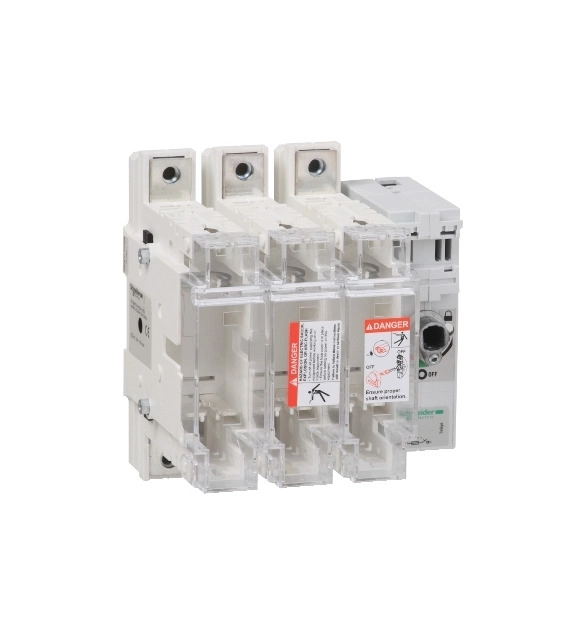

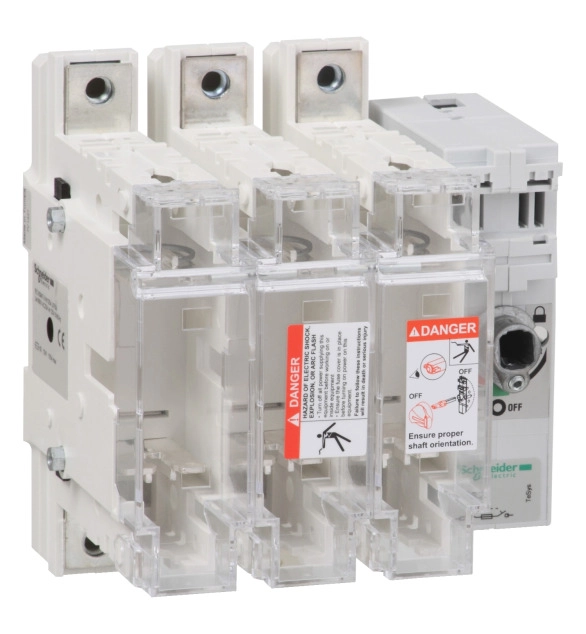

TeSys GS fuse switch-disconnector, 3 poles (3P), 63A/750V, to be used with DIN blade fuse links size 000 up to 63A, for motor applications up to 30kW@400V AC-23. To be equipped with an external front side or right-hand side mounting operating handle GS2AH (several models available). It provides screw terminals with 3P terminal shrouds, high short circuit current rating 100kA@400V. Add-on auxiliary contact modules, front mounting GS1AM (early-break and position signaling), side mounting GS1AN (position signaling) can complete the assembly (to be ordered separately). Type aM and gG size 000 blade fuse links without strickers DF2FGA, DF2FGN are available (to be ordered separately). Multi standards certified (IEC, Marine).
