Допълн. защитен модул за утечка на земя VigiPacT, ComPacT NSX 100/160, 200-440VAC, 30mA to 30A, 4P | Spark & Co
  • 3D
|

СКУ: LV429489

Допълн. защитен модул за утечка на земя VigiPacT, ComPacT NSX 100/160, 200-440VAC, 30mA to 30A, 4P

  • Brand
    Schneider Electric
  • Rated fault current
    0.03
  • Delay adjustable
    TRUE
  • Rated control supply voltage Us at AC 50HZ
    200
  • Rated control supply voltage Us at AC 60HZ
    200
  • Max. rated operation voltage Ue
    440
  • Max. power on-delay time
    4000

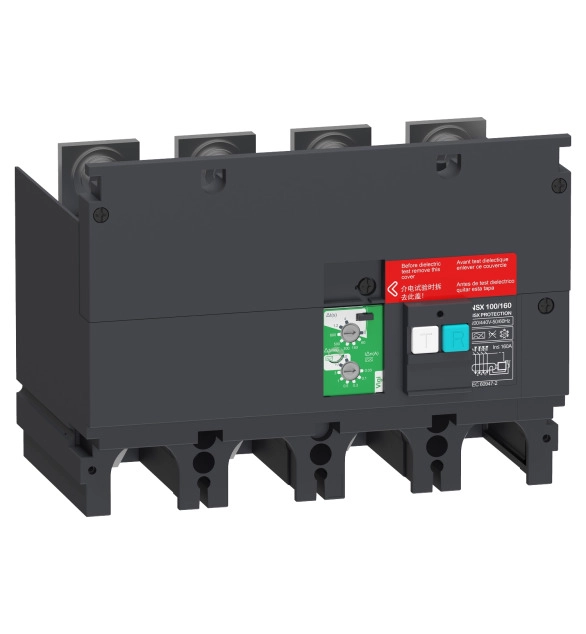

This is a Vigi add-on module for ComPact NSX 100/160 that provides an earth-leakage protection. It is used for 4 poles circuit breakers. The operational rated voltage is between 200 and 440 VAC 50/60 Hz. The earth-leakage sensitivity is adjustable from 30 mA to 30 A. It is installed directly on the device terminals and directly actuates the trip unit in case of earth-leakage default. This Vigi add-on module is self-powered internally by the distribution-system voltage, even is supplied by only 2 phases. It is compliant with IEC 60947-2 standard, annex B.
