Device Feeder, Linergy FC, for 5 compact NSXm 3P, prewired connections to Linergy LGY Busbars | Spark & Co
  • 3D
|

СКУ: LVS04410

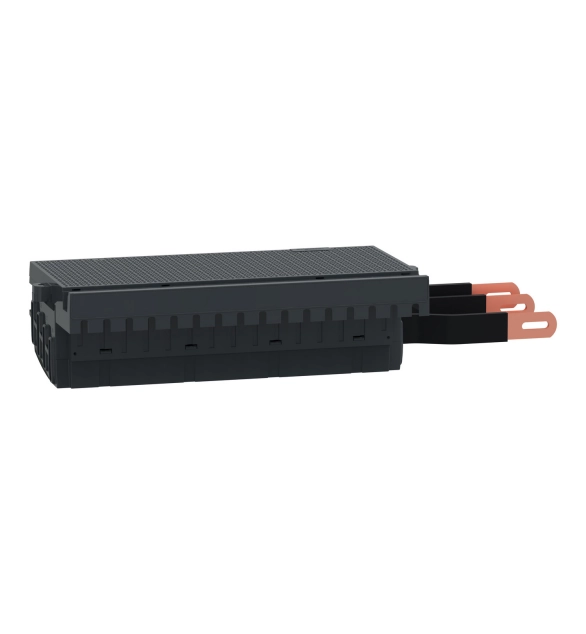

Device Feeder, Linergy FC, for 5 compact NSXm 3P, prewired connections to Linergy LGY Busbars

  • Brand
    Schneider Electric
  • Colour
    EV000206
  • Insulated
    TRUE
  • Suitable for devices with auxiliary switch
    FALSE
  • Suitable for devices with N-conductor
    TRUE
  • Module width
    27
  • Number of phases
    3
  • Number of poles
    4
  • Suitable for number of devices
    4
  • Rated permanent current Iu
    500
  • Max. rated operation voltage Ue
    690
  • Type of electric connection
    EV000154
  • Length
    480
  • Cross section
    95
  • Rated surge voltage
    8
  • Conditioned rated short-circuit current Iq
    50
  • Rated short-time withstand current lcw
    18

Mounting bracket for PrismaSeT G and designed to support terminal blocks with four vertical DIN rails. Suitable for floor-standing enclosures (width 600 mm) and wall-mounted enclosures (width 600 mm). Provided Equipment is 4 vertical DIN rails. Electrophoresis treatment and hot-polymerised polyester epoxy powder with White (RAL 9003)
