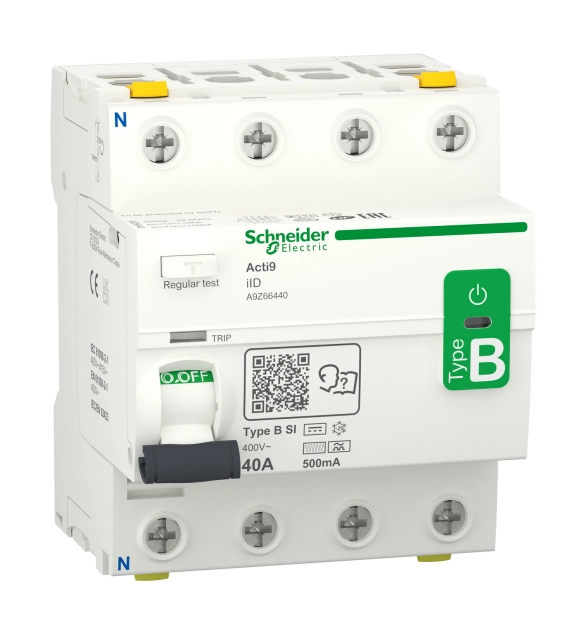

Дефектнотокова защита (RCCB), Acti9 iID, 4P, 40A, B-SI тип, 500mA, двойна клема

This Acti9 iID product is a modular and reliable residual current circuit breaker (RCCB). It is a 4P circuit breaker with 40A In rated current, 500mA earth leakage sensitivity and B-SI type protection class. This product protects against electric shock by indirect contact. It performs the function of disconnection of electrical circuits in case of earth fault. Its unique Visitrip indicator reduces intervention time by showing the faulty device with a mechanical indicator on front face. This product also has a VisiSafe window with a green strip on the toggle indicating full opening of the poles allowing downstream maintenance. This product complies with IEC/EN 61008-2-1 and IEC/EN 62423 standards. It is certified with CCC certification. The (Im/IΔm) rated breaking and making short circuit capacity is 1500A. The (Inc/IΔc) conditional rated short circuit current is 10kA. It has an electrical endurance going up to 15000 cycles and a mechanical endurance going up to 20000 cycles. The Ue rated operational voltage is 400VAC. It is DIN rail mountable. The width in 9mm pitches is 8. The pollution degree is 3. The overvoltage category is IV. The product colour is white (RAL 9003). The dimensions are (W) 72mm x (H) 88mm x (D) 79mm. The weight is 415g. According to IEC 60529 standard, the IP degree of protection is IP20 and becomes IP40 once in a modular enclosure. The operating temperature is from -25°C to 60°C. The storage temperature is from -40°C to 85°C.
