СКУ: ATV320U02M2W

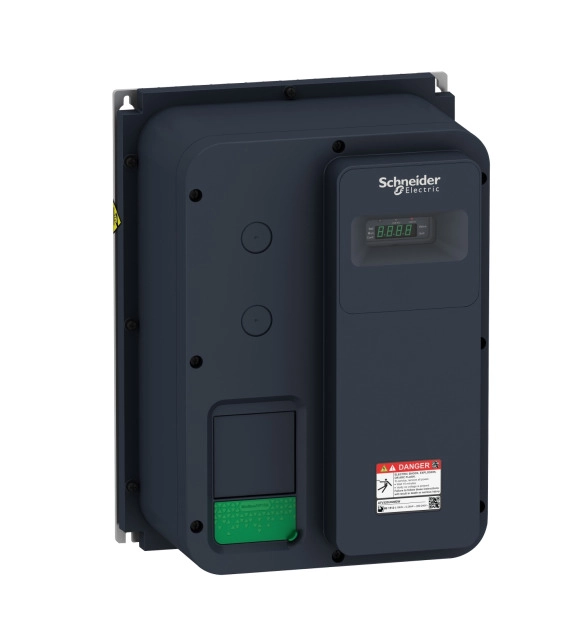

Честотен регулатор, ATV320, 0.18 kW, 200…240 V, 1 phase, enclosed
-
Brand
Schneider Electric
-
Supporting protocol for SERCOS
FALSE
-
Supporting protocol for INTERBUS-Safety
FALSE
-
Supporting protocol for AS-Interface Safety at Work
FALSE
-
Supporting protocol for DeviceNet Safety
FALSE
-
Supporting protocol for Foundation Fieldbus
FALSE
-
Supporting protocol for SafetyBUS p
FALSE
-
Supporting protocol for PROFINET CBA
FALSE
-
Supporting protocol for PROFIsafe
FALSE
-
Supporting protocol for ASI
FALSE
-
Supporting protocol for KNX
FALSE
-
Supporting protocol for INTERBUS
FALSE
-
Supporting protocol for Data-Highway
FALSE
-
Supporting protocol for LON
FALSE
-
Supporting protocol for other bus systems
TRUE
-
Supporting protocol for SUCONET
FALSE
-
With control element
TRUE
-
With optical interface
FALSE
-
Supporting protocol for EtherNet/IP
TRUE
-
Supporting protocol for TCP/IP
TRUE
-
Supporting protocol for Modbus
TRUE
-
Number of HW-interfaces other
1
-
Supporting protocol for CAN
TRUE
-
Number of HW-interfaces RS-485
1
-
Degree of protection (NEMA)
EV014040
-
Number of analogue outputs
1
-
Degree of protection (IP)
EV006422
-
Width
250
-
Number of digital outputs
3
-
Supporting protocol for BACnet
FALSE
-
Height
340
-
Supporting protocol for PROFIBUS
TRUE
-
Supporting protocol for DeviceNet
TRUE
-
Type of converter
EV009484
-
Mains frequency
EV008015
-
Number of phases output
EV000069
-
Relative symmetric net voltage tolerance
10
-
Relative symmetric net frequency tolerance
5
-
Application in domestic- and commercial area permitted
FALSE
-
Application in industrial area permitted
TRUE
-
With PC connection
TRUE
-
Number of phases input
EV000599
-
Mains voltage
200
-
Max. output at quadratic load at rated output voltage
0.18
-
Max. output at linear load at rated output voltage
0.18
-
Supporting protocol for PROFINET IO
TRUE
-
Number of analogue inputs
3
-
4-quadrant operation possible
TRUE
-
Max. output voltage
240
-
Nominal output current I2N
1.5
-
Max. output frequency
599
-
Integrated breaking resistance
TRUE
-
Depth
182
-
Number of digital inputs
7
-
Number of HW-interfaces parallel
-
Number of interfaces PROFINET
-
Number of HW-interfaces serial TTY
-
Number of HW-interfaces USB
-
Number of HW-interfaces RS-422
-
Number of HW-interfaces industrial Ethernet
-
Number of HW-interfaces RS-232
Altivar Machine ATV320 range is an offer of variable speed drives designed for Original Equipment Manufacturers (OEMs). This drive can feed three-phase synchronous and asynchronous motors, and is enclosed for higher IP protection. It works at a rated power up to 0.18kW / 0.25hp and a rated voltage from 200V to 240V AC. Altivar high IP offers washable drives for harsh environments, if users want to clean the dust and chemical pollution outside of drives. It is delivered without fan, with embedded EMC C2 filter and it provides IP66 protection. It also incorporates parallel connection of motors and special drives using the voltage/frequency ratio and static speed accuracy and energy saving for open-loop synchronous motors. It weighs 5kg and its dimensions are 250mm wide, 340mm high, 182mm deep. The drive software includes 5 safety functions that help machines meet safety requirements. These safety functions are configured using SoMove software. This Altivar Machine ATV320 is designed for conveyors, carton packers, gantry cranes, woodworking, metal processing, fans, Food & Beverage industry. It conforms to IEC, UL, TUV, KC and other international standards. Mounting accessories and external options (braking resistors, line chokes, motor chokes, additional EMC filters) are available with Altivar Machine ATV320 drives. The type of external accessories and options depends on the drive rating. The product is delivered in two packages. It is designed to be mounted in vertical position (+/- 10 °) on a panel, thanks to 4 fixing holes. It is fully integrated inside Schneider Electric’s EcoStruxure Machine through DTM. It is possible to configure, control, and diagnose ATV320 drives directly in SoMachine and SoMove software by means of the same software brick (DTM). It complies with environmental protection directives such as RoHS, WEEE, etc.
