СКУ: ATV310HD18N4E

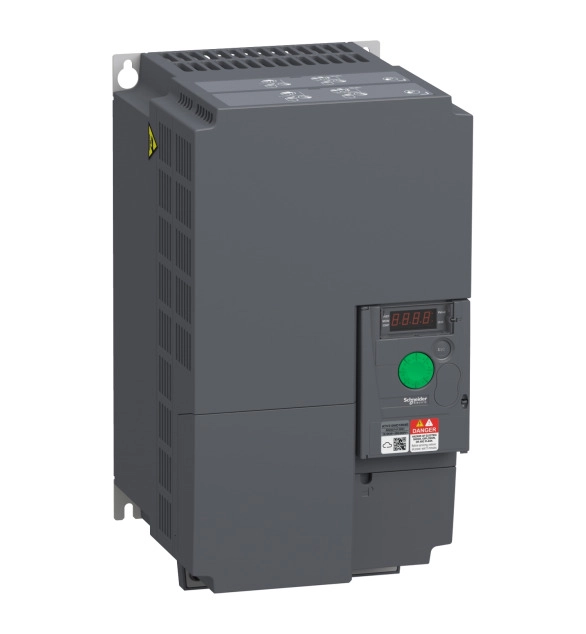

ЧЕСТОТЕН ПРЕОБРАЗУВАТЕЛ ATV310 3PH 400V 18.5k w/o filter
-
Brand
Schneider Electric
-
Degree of protection (IP)
EV006405
-
Supporting protocol for SERCOS
FALSE
-
Supporting protocol for INTERBUS-Safety
FALSE
-
Supporting protocol for AS-Interface Safety at Work
FALSE
-
Supporting protocol for DeviceNet Safety
FALSE
-
Supporting protocol for EtherNet/IP
FALSE
-
Supporting protocol for Foundation Fieldbus
FALSE
-
Supporting protocol for SafetyBUS p
FALSE
-
Supporting protocol for PROFINET CBA
FALSE
-
Supporting protocol for PROFINET IO
FALSE
-
Supporting protocol for PROFIsafe
FALSE
-
Supporting protocol for ASI
FALSE
-
Supporting protocol for PROFIBUS
FALSE
-
Supporting protocol for TCP/IP
FALSE
-
Supporting protocol for KNX
FALSE
-
Supporting protocol for CAN
FALSE
-
Supporting protocol for INTERBUS
FALSE
-
Supporting protocol for DeviceNet
FALSE
-
Supporting protocol for Data-Highway
FALSE
-
Supporting protocol for LON
FALSE
-
Supporting protocol for SUCONET
FALSE
-
Supporting protocol for other bus systems
FALSE
-
With control element
TRUE
-
With optical interface
FALSE
-
Number of HW-interfaces parallel
-
Number of interfaces PROFINET
-
Number of HW-interfaces other
-
Number of HW-interfaces serial TTY
-
Supporting protocol for Modbus
TRUE
-
Number of HW-interfaces RS-422
-
Number of HW-interfaces RS-485
1
-
Number of HW-interfaces industrial Ethernet
-
Depth
191
-
Number of analogue outputs
1
-
Number of HW-interfaces USB
-
Number of HW-interfaces RS-232
-
Number of analogue inputs
1
-
Number of digital inputs
4
-
Height
330
-
With PC connection
FALSE
-
Supporting protocol for BACnet
FALSE
-
Width
180
-
Number of digital outputs
2
-
Type of converter
EV009484
-
Mains frequency
EV008015
-
Number of phases input
EV000069
-
Number of phases output
EV000069
-
Relative symmetric net voltage tolerance
10
-
Relative symmetric net frequency tolerance
5
-
Integrated breaking resistance
FALSE
-
Application in industrial area permitted
TRUE
-
Max. output frequency
400
-
Application in domestic- and commercial area permitted
TRUE
-
Mains voltage
380
-
4-quadrant operation possible
TRUE
-
Max. output at quadratic load at rated output voltage
18.5
-
Max. output at linear load at rated output voltage
18.5
-
Max. output voltage
460
-
Nominal output current I2N
39
This product is part of the Lexium 32 range, an offer of servo drives from 0.15kW to 11kW and associated servo motors. This servo motor has a maximum mechanical speed of 8000RPM, a continuous stall torque of 1.2Nm, a keyed shaft end, and no holding brake. It is equipped with a single-turn SinCos Hiperface® feedback with 131072points/turn speed feedback resolution. It is a servo motor with a rated supply voltage of 480V, a continuous stall current of 1.78A and a continuous power of 1.05W. The shaft dimensions are 11mm (diameter) x 23mm (length). It is furnished 2x rotatable right-angled connectors for power and encoder connections. It is an IP54 standard rated product (shaft and housing). It measures 122mm long without holding break, 161mm long with holding break, 109.5mm high, and its flange size is 70mm. It weighs 1.6kg. BMH servo motors associated with the Lexium 32 servo drive are intended for applications such as Packaging, Textile, gantry cranes, Hoists. Lexium BMH servo motors conform to international standards IEC/EN 61800-5-1, IEC/EN 61800-3, are UL and CSA certified, and CE marked. This motor is designed to be compatible with Lexium 32 servo drive, encoder and power cables, optional IP67 conformity kit, gearbox option and braking resistor. It installs on 4x holes (M4 x 14), the circle diameter of the mounting holes is 75mm up to 82mm. Lexium 32 is a servo drive range providing drive and motor combination that has exactly the right power, performance and functionality. The Lexium 32 range includes four servo drive models with power ratings from 0.15kW to 11kW, and two servo motor ranges, BMH and BSH series.
