СКУ: EZ9D35606

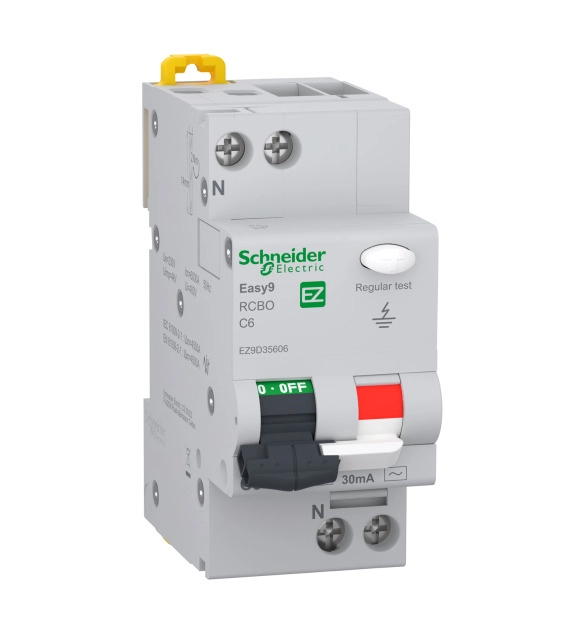

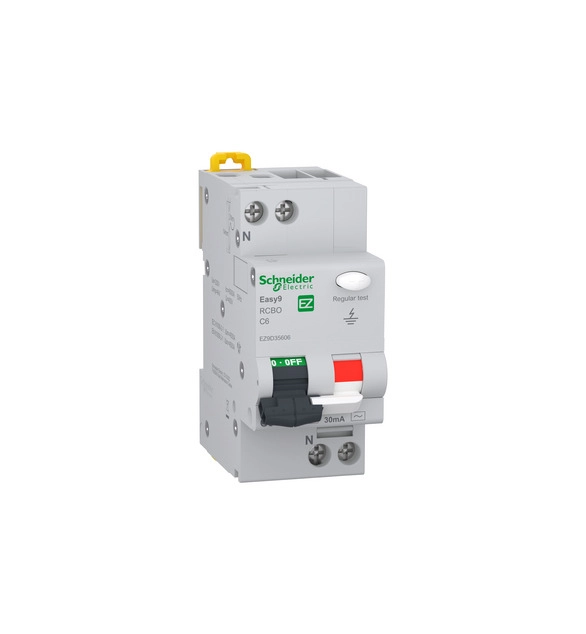

Автоматичен прекъсвач с деф. защ., Easy 9, 1P + N, 6 A, крива С, 6000A, 30 mA, тип АС
-
Brand
Schneider Electric
-
With mounting plate
FALSE
-
Extension possible
FALSE
-
RAL-number
9003
-
Colour
EV000202
-
Material housing
EV000139
-
DIN-rail
TRUE
-
With lock
FALSE
-
EMC-version
FALSE
-
Degree of protection (IP)
EV006415
-
Type of cover
EV004216
-
Transparent cover/door
TRUE
-
Type of closure
EV000154
-
Cover model
EV000116
-
Signal passing door
TRUE
-
Width in number of modular spacings
12
-
Number of rows
3
-
Earthing terminal block
TRUE
-
Neutral terminal block
TRUE
-
Mounting method
EV000383
-
Width
300
-
Depth
99
-
Built-in depth
76
-
Height
470
This Easy9 XP is a modular residual current breaker with overcurrent protection (RCBO). It is a 1P+N circuit breaker with 1 protected pole, 6A In rated current and C tripping curve. The earth leakage protection class is AC type with a sensitivity of 30mA. The earth-leakage protection time delay is instantaneous. The Icn rated short circuit breaking capacity is up to 6000A according IEC 61009-1 standard. This product protects against short circuit, cable overload, electrical shock by indirect contact and fire hazards. It can be fitted instead of a miniature circuit breaker for complete protection of one circuit. This product is compliant with IEC 61009-1 standard. It has an electrical endurance going up to 4000 cycles and a mechanical endurance going up to 10000 cycles. The Ue operational voltage is 230VAC. It is DIN rail mountable. The width in 9mm pitches is 4. The dimensions are (W) 36mm x (H) 82mm x (D) 70.5mm. It has an IP20 degree of protection. It becomes IP40 once in modular enclosure according to IEC/EN 60529 standard. The operating temperature is from -5°C to 60°C. The storage temperature is from -40°C to 85°C.
