СКУ: C25R32D160

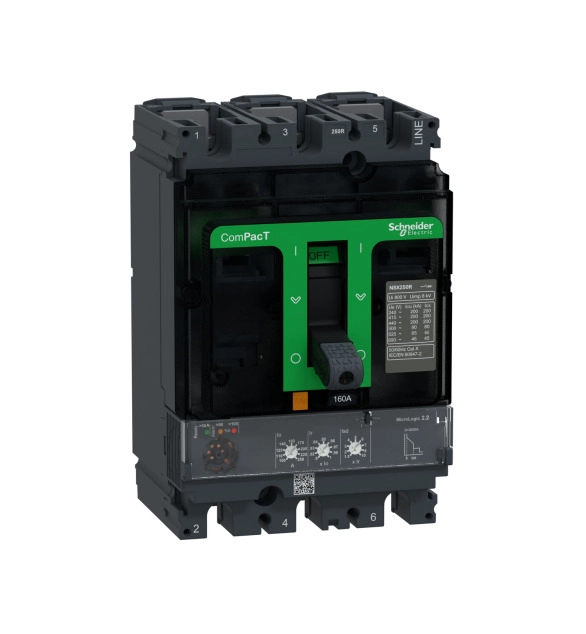

Автоматичен прекъсвач NSX250R 200kA AC 3P 160A 2.2
-
Brand
Schneider Electric
-
Type of electrical connection of main circuit
EV000415
-
Number of poles
3
-
Device construction
EV009211
-
Motor drive integrated
FALSE
-
Degree of protection (IP)
EV006415
-
Rated permanent current Iu
160
-
Type of control element
EV000421
-
Rated voltage
690
-
Position of connection for main current circuit
EV007926
-
Integrated earth fault protection
FALSE
-
Motor drive optional
TRUE
-
Suitable for DIN rail (top hat rail) mounting
FALSE
-
With switched-off indicator
TRUE
-
With integrated under voltage release
FALSE
-
DIN rail (top hat rail) mounting optional
TRUE
-
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
200
-
Complete device with protection unit
TRUE
-
Overload release current setting
63
-
Adjustment range short-term delayed short-circuit release
94.5
-
Adjustment range undelayed short-circuit release
2400
-
Number of auxiliary contacts as normally closed contact
-
Number of auxiliary contacts as normally open contact
-
Number of auxiliary contacts as change-over contact
This ComPacT NSX250R is a complete 3P 3d fixed circuit breaker designed to optimize space and breaking capacity. It is an optimal choice for all standard and specific applications. The breaking capacity (Icu) is 200kA rms at 415VAC 50/60Hz and 45kA rms at 690VAC 50/60Hz. The operational voltage is 690VAC 50/60Hz. This product embeds an electronic MicroLogic 2.2 trip unit, with 160A rating. MicroLogic 2.2 trip unit provides adjustable long time and short time protections, and a fixed instantaneous protection. This 3 poles version (105mm x 161mm x 86mm) comes with a variety of optional functions and accessories. It is compliant with international standards (IEC 60947), CCC, EAC and marine specifications. ComPacT NSX250R is part of Schneider Electric EcoStruxure Power architecture.
