Автоматичен прекъсвач Easypact EZC630H - TMD - 600 A - 4 полюса 3d | Spark & Co
  • 3D
|

СКУ: EZC630H4600N

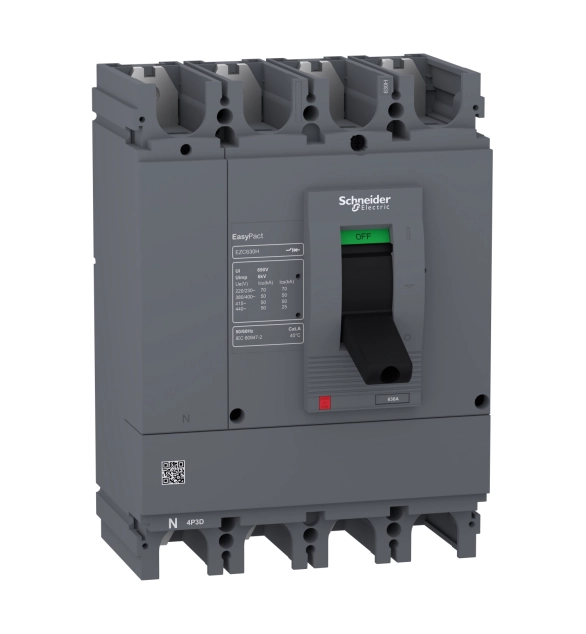

Автоматичен прекъсвач Easypact EZC630H - TMD - 600 A - 4 полюса 3d

  • Brand
    Schneider Electric
  • Number of poles
    3
  • Device construction
    EV009211
  • Degree of protection (IP)
    EV006405
  • Rated permanent current Iu
    630
  • Type of electrical connection of main circuit
    EV008864
  • Type of control element
    EV000421
  • DIN rail (top hat rail) mounting optional
    FALSE
  • With switched-off indicator
    FALSE
  • Position of connection for main current circuit
    EV007926
  • Integrated earth fault protection
    FALSE
  • Motor drive optional
    TRUE
  • Suitable for DIN rail (top hat rail) mounting
    FALSE
  • With integrated under voltage release
    FALSE
  • Motor drive integrated
    TRUE
  • Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
    50
  • Number of auxiliary contacts as change-over contact
    5
  • Number of auxiliary contacts as normally open contact
    5
  • Complete device with protection unit
    TRUE
  • Rated voltage
    440
  • Number of auxiliary contacts as normally closed contact
    5

This is a 500A circuit breaker for EasyPact EZC630N. This product can work below rated operational voltage(Ue) 440VAC at 50/60Hz. The ultimate breaking capacity(Icu) is 36kA at 440V, in terms of complete range Ics=100%Icu(Ics= 50%Icu at 440V. This version of product is designed 4 poles frame with detection on 3 poles,equiped TMD trip unit for thermal-magnetic protection. It is compliance with standard IEC60947, CE certification and some independent lab(KEMA,ASEFA,TUV) or third-party Tilva. This device is certified for operation in pollution degree III environment as defined by IEC60947, and pass the test of extremely atmospheric conditions. Device can be mounted vertically or horizontally in a metal enclosure,and against from safety risk by padlocking. The degree of protection is IP40 for direct rotary handle,and IP54 for extended rotary handle. This series have slots used for indication or voltage release auxiliaries positioning , depending on where it is inserted in the device behind the front cover of circuit breaker. The fixed dimension is 185mm(width),255mm(height),110mm(Depth).
