Автоматичен прекъсвач Easypact EZC630H - TMD - 500 A - 4 полюса 3d | Spark & Co
  • 3D
|

СКУ: EZC630H4500N

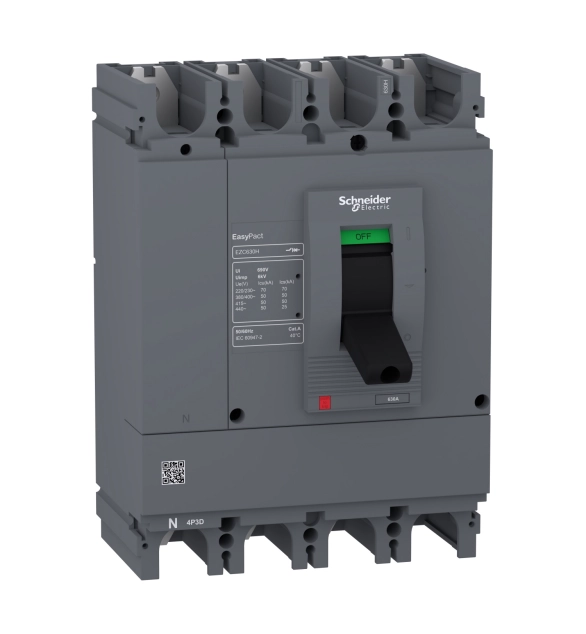

Автоматичен прекъсвач Easypact EZC630H - TMD - 500 A - 4 полюса 3d

  • Brand
    Schneider Electric
  • Device construction
    EV009211
  • Degree of protection (IP)
    EV006405
  • Number of poles
    4
  • Rated permanent current Iu
    400
  • Type of electrical connection of main circuit
    EV008864
  • Type of control element
    EV000421
  • DIN rail (top hat rail) mounting optional
    FALSE
  • With switched-off indicator
    FALSE
  • Position of connection for main current circuit
    EV007926
  • Integrated earth fault protection
    FALSE
  • Motor drive optional
    TRUE
  • Suitable for DIN rail (top hat rail) mounting
    FALSE
  • With integrated under voltage release
    FALSE
  • Motor drive integrated
    TRUE
  • Number of auxiliary contacts as change-over contact
    5
  • Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
    36
  • Number of auxiliary contacts as normally open contact
    5
  • Complete device with protection unit
    TRUE
  • Rated voltage
    440
  • Number of auxiliary contacts as normally closed contact
    5

EasyPact EZC630N is a 3 poles fixed circuit breaker designed for the protection of low voltage electrical installations. It is used for standard applications in industries and buildings, offering good performance. The breaking capacity (Icu) is 36kA rms at 415VAC 50/60Hz. The operational voltage is 440VAC 50/60Hz or 250VDC. The rating of the thermal-magnetic trip unit is 600A. The trip unit provides fixed overload and instantaneous protections. This 3 poles version (140mm x 255mm x 110mm) comes with a variety of optional functions and accessories. Easypact EZC630N is compliant with international standards (IEC 60947, UL 508) and marine certifications.
