СКУ: EZC400N3350N

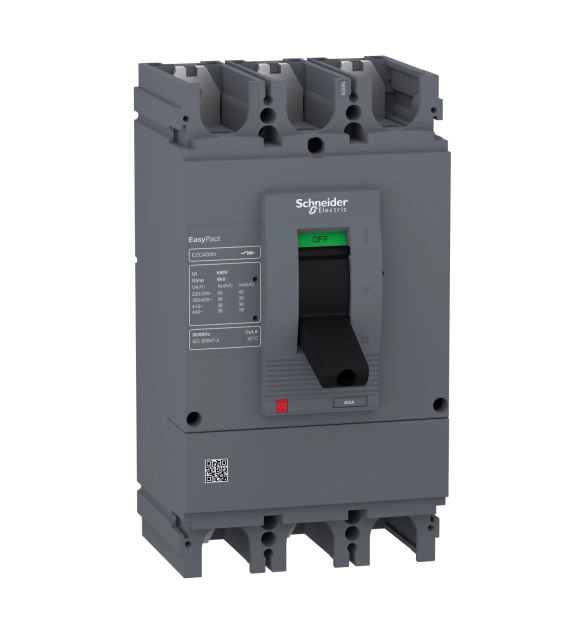

Автоматичен прекъсвач Easypact EZC400N - TMD - 350 A - 3 полюса 3d
-
Brand
Schneider Electric
-
Number of poles
3
-
Device construction
EV009211
-
Degree of protection (IP)
EV006405
-
Rated permanent current Iu
630
-
Type of electrical connection of main circuit
EV008864
-
Type of control element
EV000421
-
DIN rail (top hat rail) mounting optional
FALSE
-
With switched-off indicator
FALSE
-
Position of connection for main current circuit
EV007926
-
Integrated earth fault protection
FALSE
-
Motor drive optional
TRUE
-
Suitable for DIN rail (top hat rail) mounting
FALSE
-
With integrated under voltage release
FALSE
-
Motor drive integrated
TRUE
-
Number of auxiliary contacts as change-over contact
5
-
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
36
-
Number of auxiliary contacts as normally open contact
5
-
Complete device with protection unit
TRUE
-
Rated voltage
440
-
Number of auxiliary contacts as normally closed contact
5
EasyPact EZC400N is a 3 poles fixed circuit breaker designed for the protection of low voltage electrical installations. It is used for standard applications in industries and buildings, offering good performance. The breaking capacity (Icu) is 36kA rms at 415VAC 50/60Hz. The operational voltage is 440VAC 50/60Hz or 250VDC. The rating of the thermal-magnetic trip unit is 400A. The trip unit provides fixed overload and instantaneous protections. This 3 poles version (140mm x 255mm x 110mm) comes with a variety of optional functions and accessories. Easypact EZC400N is compliant with international standards (IEC 60947, UL 508) and marine certifications.
