Автоматичен прекъсвач, ComPacT NSX400HB2, 100kA/690VAC, 4 полюса, MicroLogic 2.3 изключвателно устройство 250A | Spark & Co
  • 3D
|

СКУ: C40W42D250

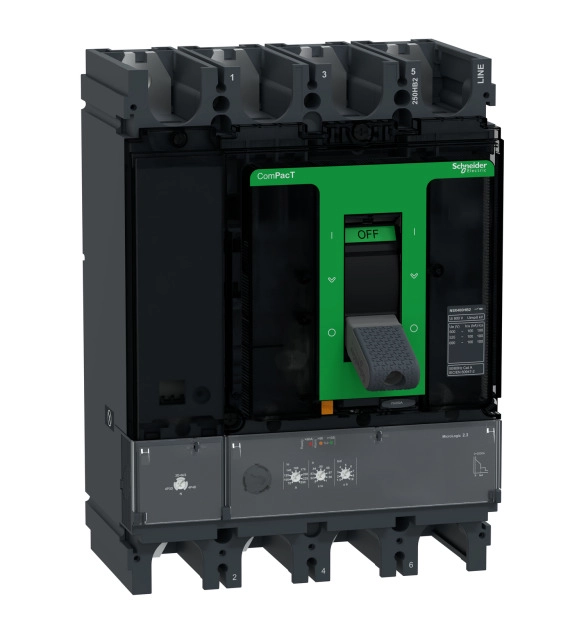

Автоматичен прекъсвач, ComPacT NSX400HB2, 100kA/690VAC, 4 полюса, MicroLogic 2.3 изключвателно устройство 250A

  • Brand
    Schneider Electric
  • Type of electrical connection of main circuit
    EV000415
  • Number of poles
    3
  • Device construction
    EV009211
  • Rated operating voltage
    690
  • Width
    140
  • Degree of protection (IP)
    EV006415
  • Rated permanent current Iu
    320
  • With integrated under voltage release
    FALSE
  • Type of control element
    EV000154
  • Depth
    110
  • With integrated auxiliary switch
    FALSE
  • Phase failure sensitive
    TRUE
  • With thermal protection
    TRUE
  • Switch off technique
    EV000101
  • Height
    255
  • Overload release current setting
    160
  • Adjustment range undelayed short-circuit release
    4800

TeSys K control relay, 4 contacts (4NO), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a 24V DC control circuit with no inrush consumption and equipped with a surge suppression device, connection by screw clamp terminals. For high operating rates until 180 cycles/min and ambient temperature -25/+50°C, it procures high reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. Multi standards certified (IEC, UL, CSA, CCC, EAC).
