СКУ: BMH1904P31A2A

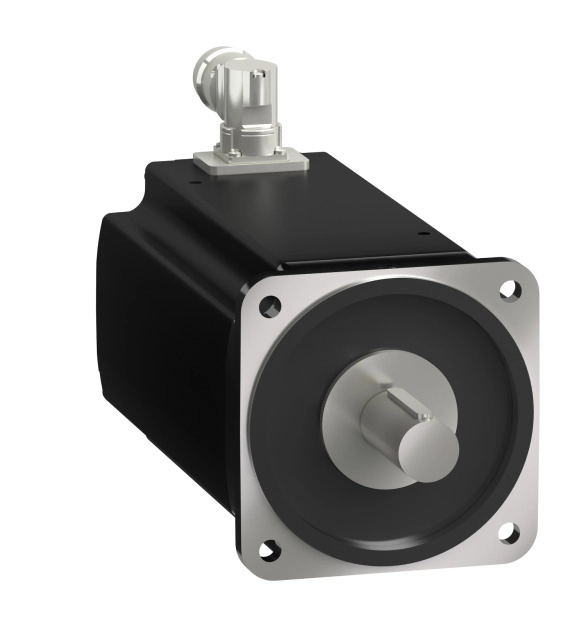

servo motor BMH - 100 Nm - 3000 rpm - keyed shaft - without brake - IP65/IP67
-
Brand
Schneider Electric
-
Number of phases
3
-
Voltage type
EV000509
-
Rated voltage
230
-
Degree of protection (IP)
EV000154
-
Rated frequency
50
-
Material housing
EV000154
-
Number of poles
-
Operating temperature
-
Construction type
EV000154
-
Bearing
EV000154
-
Model
EV006582
-
Motor efficiency class
EV000154
-
Overload capability
FALSE
-
Cooling method
EV000154
-
Shaft end type
EV000154
-
Vacuum pressure impregnation (VPI)
EV000154
-
With positive temperature coefficient resistor (PTC)
FALSE
-
With resistance temperature detector (RTD)
FALSE
-
Intrinsic safety (IS)
EV000494
-
Suitable for frequency control
FALSE
-
With anti-condensation
FALSE
-
Duty cycle
EV000154
-
Starting torque ratio
-
Breakdown torque ratio
-
Starting current ratio
-
Insulation class according to IEC
EV000154
-
Nominal torque
34.4
This product is part of the Lexium 32 range, an offer of motion servo drives and servo motors. This is a servo motor that features a maximum mechanical speed of 3000RPM, a keyed shaft end, without holding brake. It is equipped with a single-turn encoder type SinCos Hiperface. It has two rotatable right-angle connectors dedicated to power and encoder cables. It has a rated supply voltage of 480V, a continuous stall current of 40A, and a continuous stall torque of 100Nm. Shaft end is IP65 rated, and IP20 with a fan module. The motor flange size is 190mm, fixed by 4x 14mm holes. The circle diameter of the mounting holes is 215mm. It weighs 57.4kg. This servo motor is designed for Lexium 32 drives. It is certified by UL. It is compatible with LXM32MC10N4 servo drive. its mounting support is an international standard flange. The Lexium 32 range combines servo drives with motors to provide the right power, performance and functionality at the right price. Lexium 32 simplifies all aspects in the machine lifecycle from engineering to maintenance.
