Автоматичен прекъсвач, ComPacT NSX400HB1, 75kA/690VAC, 4 полюса, MicroLogic 5.3E изключвателно устройство 400A | Spark & Co
  • 3D
|

СКУ: C40V45E400

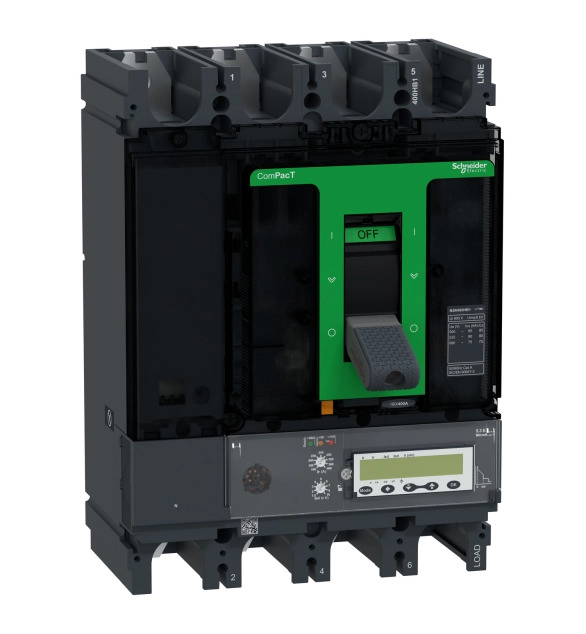

Автоматичен прекъсвач, ComPacT NSX400HB1, 75kA/690VAC, 4 полюса, MicroLogic 5.3E изключвателно устройство 400A

  • Brand
    Schneider Electric
  • Type of electrical connection of main circuit
    EV000415
  • Number of poles
    3
  • Device construction
    EV009211
  • Rated operating voltage
    690
  • Width
    140
  • Degree of protection (IP)
    EV006415
  • Rated permanent current Iu
    320
  • With integrated under voltage release
    FALSE
  • Type of control element
    EV000154
  • Depth
    110
  • With integrated auxiliary switch
    FALSE
  • Phase failure sensitive
    TRUE
  • With thermal protection
    TRUE
  • Switch off technique
    EV000101
  • Height
    255
  • Overload release current setting
    160
  • Adjustment range undelayed short-circuit release
    4800

This ComPacT NSX400HB1 is a complete 4P 4d fixed circuit breaker designed to optimize space and breaking capacity. It is an optimal choice for all standard and specific applications. The breaking capacity (Icu) is 85kA rms at 500VAC 50/60Hz and 75kA rms at 690VAC 50/60Hz. The operational voltage is 690VAC 50/60Hz. This product embeds a 400A rating electronic MicroLogic 6.3 E trip unit, with an adjustable ground-fault protection (with OFF position). MicroLogic 6.3 E trip unit provides adjustable long time, short time and instantaneous protection. MicroLogic 6.3 E has an embedded display unit for fine settings adjustment and display of the energy (energy meter). This 4 poles version (185mm x 255mm x 110mm) comes with a variety of optional functions and accessories. It is compliant with international standards (IEC 60947), CCC, EAC and marine specifications. ComPacT NSX400HB1 is part of Schneider Electric EcoStruxure Power architecture.
