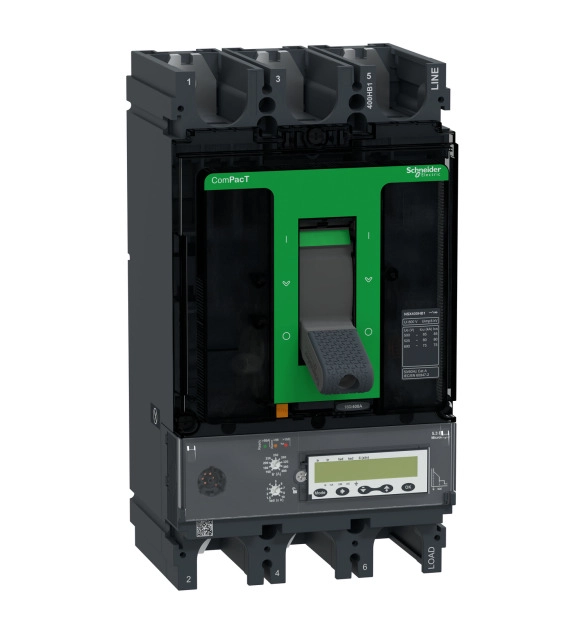

Автоматичен прекъсвач, ComPacT NSX400HB1, 75kA/690VAC, 3 полюса, MicroLogic 5.3E изключвателно устройство 400A

• Brand
  Schneider Electric
• Type of electrical connection of main circuit
  EV000415
• Number of poles
  3
• Device construction
  EV009211
• Motor drive integrated
  FALSE
• Degree of protection (IP)
  EV006415
• Rated permanent current Iu
  400
• Type of control element
  EV000421
• DIN rail (top hat rail) mounting optional
  FALSE
• Rated voltage
  690
• Position of connection for main current circuit
  EV007926
• Motor drive optional
  TRUE
• Suitable for DIN rail (top hat rail) mounting
  FALSE
• With switched-off indicator
  TRUE
• With integrated under voltage release
  FALSE
• Number of auxiliary contacts as normally closed contact
• Number of auxiliary contacts as change-over contact
• Number of auxiliary contacts as normally open contact
• Complete device with protection unit
  TRUE
• Overload release current setting
  160
• Adjustment range undelayed short-circuit release
  600
• Integrated earth fault protection
  TRUE
• Adjustment range short-term delayed short-circuit release
  240
