СКУ: 7311729000
NetShelter SV 42U Ш 600 mm x Д 1060 mm, разглобена референция
-
Brand
Schneider Electric
-
Surface protection
EV006034
-
Material quality
EV000154
-
Flange compression class
EV020104
-
Outer pipe diameter all connections
25
-
Article compression class
EV020104
-
Max. medium temperature (continuous)
120
-
Characteristic curve
EV021552
-
Min. medium temperature (continuous)
-20
-
Stroke length
20
-
Leakage loss of Kvs value
0.005
-
Kvs value
10
-
Housing material
EV000117
-
Nominal diameter
EV020211
-
Connections
EV000106

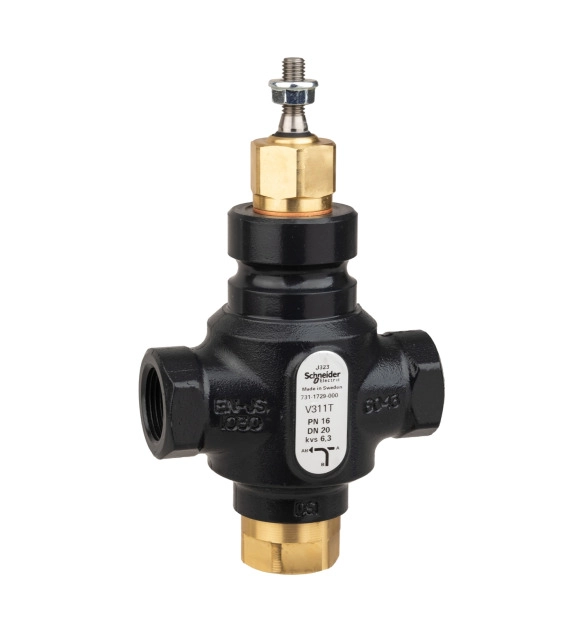

The V311T is an internally threaded 3-way globe valve designed for a wide range of heating and cooling applications. The valve uses a crown plug for precise fluid control. Nodular iron construction provides a long life and high corrosion resistance. The crown plug provides precise fluid control with a rangeability of 50:1 and is of a self cleaning design for reliable operation. Valve size: DN20, G External, Flow capacity, Kvs: 6.3 m³/h. Constructed and flanged to a PN16 pressure class. ΔPm of maximum 400 Kpa. EPDM seals provide a working temperature range of -20 °C to + 120 °C, the soft seat seal ensures a tight close off with no leakage. 20 mm stroke ensures high controllability, Equal percentage flow characteristic ensures high controllability at low opening degrees. Meets the 214/68/EE, article 4.3 of the PED (Pressure Equipment Directive).
