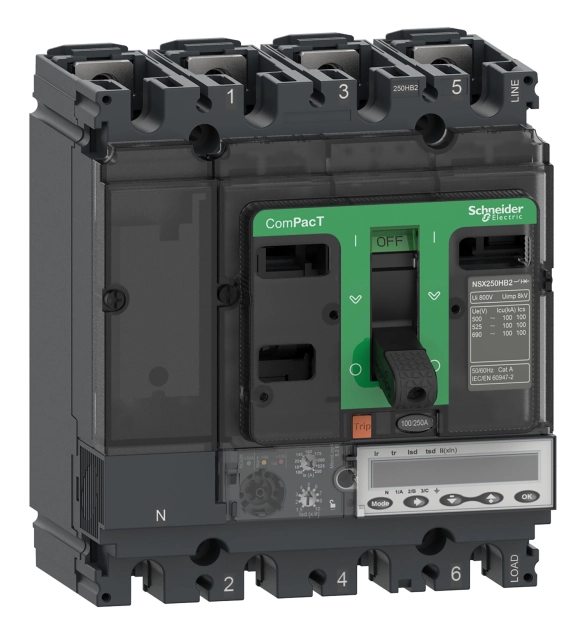

Автоматичен прекъсвач, ComPacT NSX100HB2, 100kA/690VAC, 4 полюса, MicroLogic 5.2E изключвателно устройство 100A

  • Brand
    Schneider Electric
  • Type of electrical connection of main circuit
    EV000415
  • Number of poles
    3
  • Device construction
    EV009211
  • Motor drive integrated
    FALSE
  • Degree of protection (IP)
    EV006415
  • Type of control element
    EV000421
  • DIN rail (top hat rail) mounting optional
    FALSE
  • Rated voltage
    690
  • Position of connection for main current circuit
    EV007926
  • Integrated earth fault protection
    FALSE
  • Motor drive optional
    TRUE
  • Suitable for DIN rail (top hat rail) mounting
    FALSE
  • With switched-off indicator
    TRUE
  • Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
    70
  • With integrated under voltage release
    FALSE
  • Rated permanent current Iu
    1250
  • Number of auxiliary contacts as normally closed contact
  • Number of auxiliary contacts as change-over contact
  • Number of auxiliary contacts as normally open contact
  • Complete device with protection unit
    TRUE
  • Adjustment range undelayed short-circuit release
    750
  • Overload release current setting
    500

This ComPacT NSX100HB2 is a complete 3P 3d fixed circuit breaker designed to optimize space and breaking capacity. It is an optimal choice for all standard and specific applications. The breaking capacity (Icu) is 100kA rms at 500VAC 50/60Hz and 100kA rms at 690VAC 50/60Hz. The operational voltage is 690VAC 50/60Hz. This product embeds an electronic MicroLogic 2.2 trip unit, with 40A rating. MicroLogic 2.2 trip unit provides adjustable long time and short time protections, and a fixed instantaneous protection. This 3 poles version (105mm x 161mm x 86mm) comes with a variety of optional functions and accessories. It is compliant with international standards (IEC 60947), CCC, EAC and marine specifications. ComPacT NSX100HB2 is part of Schneider Electric EcoStruxure Power architecture.
