СКУ: C10V46E100
Автоматичен прекъсвач, ComPacT NSX100HB1, 75kA/690VAC, 4 полюса, MicroLogic 6.2E изключвателно устройство 100A
-
Brand
Schneider Electric
-
Type of electrical connection of main circuit
EV000415
-
Number of poles
3
-
Device construction
EV009211
-
Rated operating voltage
690
-
Degree of protection (IP)
EV006415
-
Rated permanent current Iu
100
-
With integrated under voltage release
FALSE
-
Width
105
-
Type of control element
EV000154
-
With integrated auxiliary switch
FALSE
-
Switch off technique
EV006116
-
With thermal protection
FALSE
-
Height
161
-
Phase failure sensitive
FALSE
-
Depth
86
-
Adjustment range undelayed short-circuit release
600

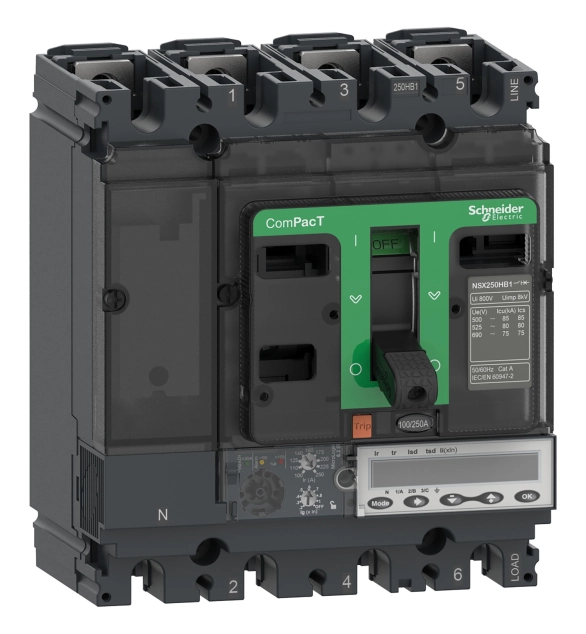

This ComPacT NSX100HB1 is a complete 4P 4d fixed circuit breaker designed to optimize space and breaking capacity. It is an optimal choice for all standard and specific applications. The breaking capacity (Icu) is 85kA rms at 500VAC 50/60Hz and 75kA rms at 690VAC 50/60Hz. The operational voltage is 690VAC 50/60Hz. This product embeds an electronic MicroLogic 5.2 E trip unit, with 40A rating. MicroLogic 5.2 E trip unit provides adjustable long time, short time and instantaneous protection. MicroLogic 5.2 E has an embedded display unit for fine settings adjustment and display of the energy (energy meter). This 4 poles version (140mm x 161mm x 86mm) comes with a variety of optional functions and accessories. It is compliant with international standards (IEC 60947), CCC, EAC and marine specifications. ComPacT NSX100HB1 is part of Schneider Electric EcoStruxure Power architecture.
