Автом. прекъсвач Easy9 MCB XP 2P 6000 C Curve 20A | Spark & Co
  • 3D
  • 3D
|

СКУ: EZ9F35220

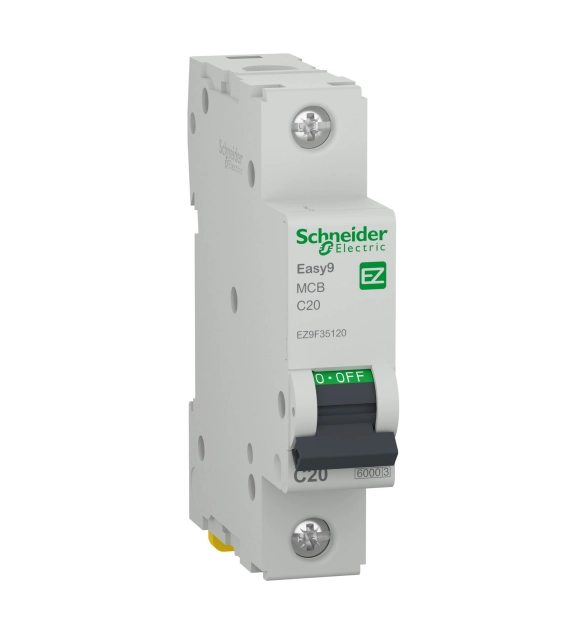

Автом. прекъсвач Easy9 MCB XP 2P 6000 C Curve 20A

  • Brand
    Schneider Electric
  • Degree of protection (IP)
    EV006405
  • Concurrently switching neutral conductor
    FALSE
  • Width in number of modular spacings
    1
  • Frequency
    50
  • Release characteristic
    EV000084
  • Flush-mounted installation
    FALSE
  • Explosion-proof
    FALSE
  • Connectable conductor cross section multi-wired
    1
  • Number of poles (total)
    1
  • Number of protected poles
    1
  • Rated voltage
    230
  • Ambient temperature during operating
    -25
  • Voltage type
    EV000460
  • Connectable conductor cross section solid-core
    1
  • Over voltage category
    3
  • Pollution degree
    2
  • Rated impulse withstand voltage Uimp
    4
  • Built-in depth
    45
  • Rated current
    6
  • Additional equipment possible
    FALSE
  • Current limiting class
    3
  • Rated insulation voltage Ui
    440
  • Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
    6

This Easy9 XP is a modular residual current breaker with overcurrent protection (RCBO). It is a 1P+N circuit breaker with 1 protected pole, 25A In rated current and C tripping curve. The earth leakage protection class is AC type with a sensitivity of 30mA. The earth-leakage protection time delay is instantaneous. The Icn rated short circuit breaking capacity is up to 6000A according IEC 61009-1 standard. This product protects against short circuit, cable overload, electrical shock by indirect contact and fire hazards. It can be fitted instead of a miniature circuit breaker for complete protection of one circuit. This product is compliant with IEC 61009-1 standard. It has an electrical endurance going up to 4000 cycles and a mechanical endurance going up to 10000 cycles. The Ue operational voltage is 230VAC. It is DIN rail mountable. The width in 9mm pitches is 4. The dimensions are (W) 36mm x (H) 82mm x (D) 70.5mm. It has an IP20 degree of protection (as per IEC/EN 60529 standard) and becomes IP40 once in modular enclosure. The operating temperature is from -5°C to 60°C. The storage temperature is from -40°C to 85°C.
