СКУ: MEG5116-6000
KNX бутон за комуникация System D
-
Degree of protection (IP)
EV006405
-
Rated operating voltage
220
-
Brand
Merten
-
With LED indication
TRUE
-
Bus system radio frequent
TRUE
-
Bus system KNX radio
FALSE
-
Bus system Powernet
FALSE
-
Mounting method
EV009726
-
Bus system KNX
FALSE
-
Bus system LON
FALSE
-
Radio frequent bidirectional
TRUE
-
With bus connection
TRUE
-
Other bus systems
EV011012
-
Bus module detachable
FALSE
-
Different phases connectable
FALSE
-
Local operation/hand operation
FALSE
-
Modular expandability
FALSE

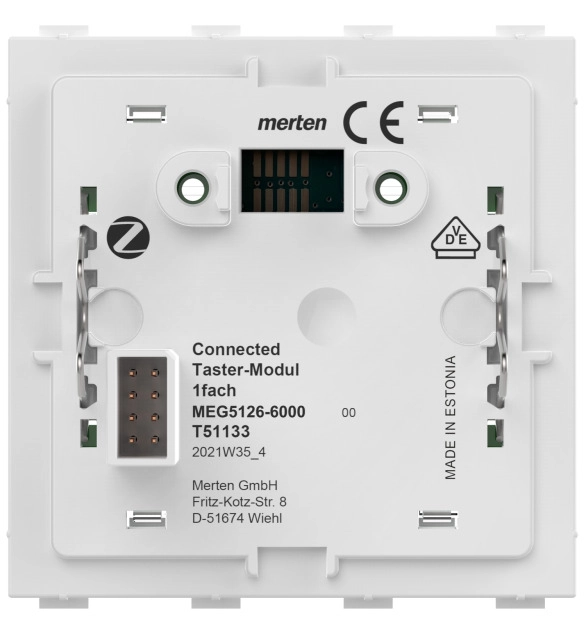

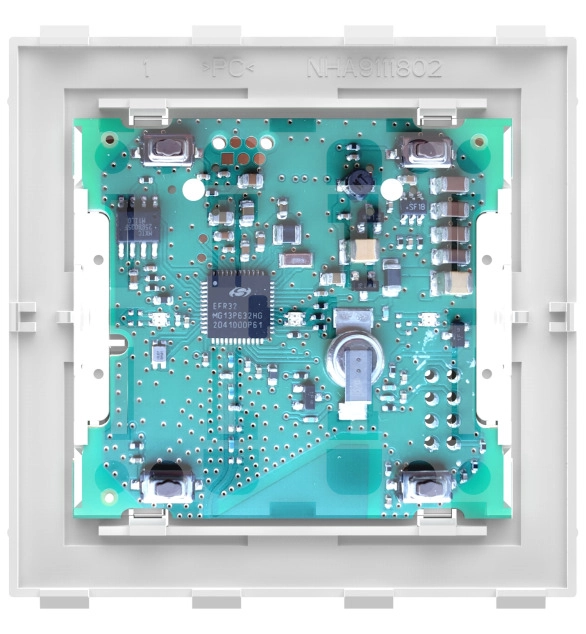

The Merten System D Wiser 1-gang push-button module is designed to be mounted on a Merten1-gang switch, dimmer or blind control insert and hosts the Zigbee connectivity function. It also need to be complemented with a System D 1-gang rocker and a System D frame in your preferred design to make a complete product. The push-button can be used as a local control to switch ON/OFF or dim one luminaire group, alternatively control a blind. Scheduling, astro and moments/scenarios can be activated in the Wiser Home App. If the push-button module is mounted on a dimmer insert, you can configure the switch-on brightness and set the dimming range for minimum and maximum brightness in the Wiser Home App. The push-button module is connected to the inserts with a module interface and is simply pressed into place. Wherever you are, the Wiser Home App allows you to control all the connected devices in the house from your smartphone. Wiser Home is also compatible with the latest technologies such as Amazon's Alexa or Google Assistant.
