СКУ: E080N420FM

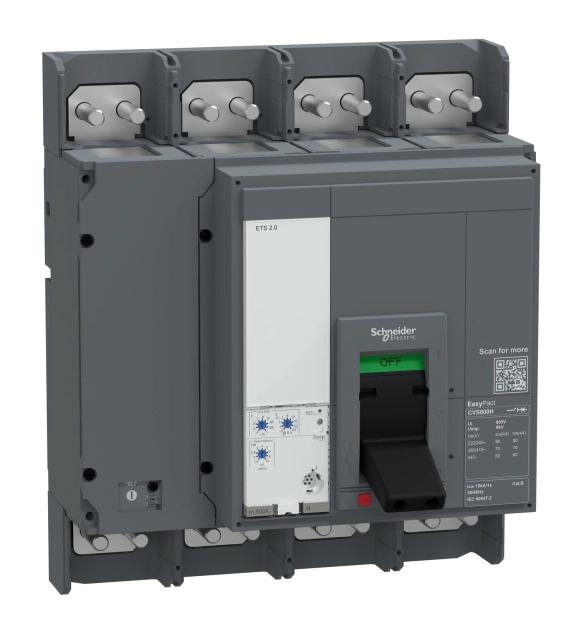

Автом. прекъсвач CVS800N 50kA 4P ETS2.0
-
Brand
Schneider Electric
-
Type of electrical connection of main circuit
EV000415
-
Number of poles
3
-
Device construction
EV009211
-
Motor drive integrated
FALSE
-
Motor drive optional
FALSE
-
Degree of protection (IP)
EV006415
-
Rated permanent current Iu
800
-
Type of control element
EV000421
-
DIN rail (top hat rail) mounting optional
FALSE
-
Position of connection for main current circuit
EV007926
-
Integrated earth fault protection
FALSE
-
Suitable for DIN rail (top hat rail) mounting
FALSE
-
With switched-off indicator
TRUE
-
With integrated under voltage release
FALSE
-
Number of auxiliary contacts as normally closed contact
-
Number of auxiliary contacts as change-over contact
-
Number of auxiliary contacts as normally open contact
-
Complete device with protection unit
TRUE
-
Rated voltage
440
This ComPacT NSX250HB2 is a complete 3P 3d fixed circuit breaker designed to optimize space and breaking capacity. It is an optimal choice for all standard and specific applications. The breaking capacity (Icu) is 100kA rms at 500VAC 50/60Hz and 100kA rms at 690VAC 50/60Hz. The operational voltage is 690VAC 50/60Hz. This product embeds a 160A rating thermal-magnetic trip unit (TMD). TMD trip unit provides an adjustable thermal overload protection and a fixed magnetic protection. This 3 poles version (105mm x 161mm x 86mm) comes with a variety of optional functions and accessories. It is compliant with international standards (IEC 60947), CCC, EAC and marine specifications. ComPacT NSX250HB2 is part of Schneider Electric EcoStruxure Power architecture.
