Авт. прекъсвач, ComPacT NS2500H, 70kA при 415VAC, 2500A, 4P, фиксиран, ръчно управление, без контролно у-во

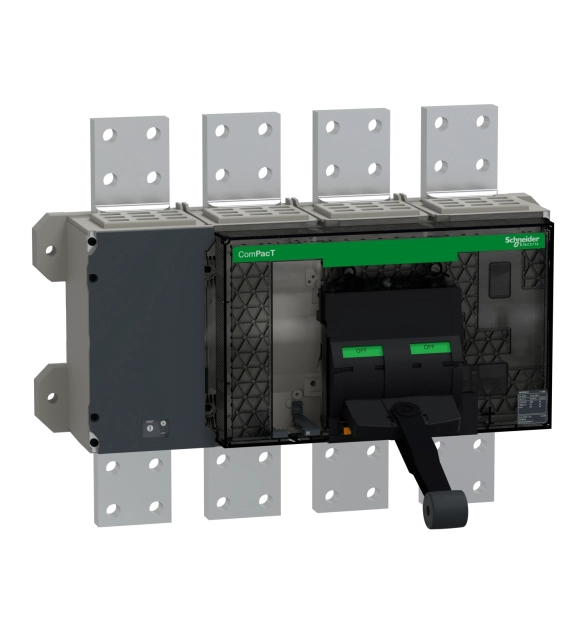

This product is a 4 poles ComPacT NS2500H circuit breaker frame. This device is in fixed mounting mode and is manually operated. This breaker frame is not equipped with a control unit, which has to be ordered separately through the ComPacT NS product selector. It is a 4 poles breaker frame for ComPacT NS2500H without control unit designed to optimize space and breaking capacity. ComPacT NS is designed to optimize space and breaking capacity, it is an optimal choice for all standard and specific applications. The operational current is 2500A. The operational voltage is 690VAC 50/60Hz. The breaking capacity (Icu) is 85kA rms at 415VAC 50/60Hz. The circuit breaker is manually operated with its toggle. The operational current is 2500A. This product comes with a variety of optional functions and accessories. This product comes with a variety of optional functions and accessories. The dimensions (without the toggle) are 330mm (Heigh) x 535mm (Width) x 160mm (Depth). It is compliant with IEC 60947-1 and IEC60947-2 international standards. ComPacT NS can be integrated within Schneider Electric EcoStruxure Power architecture. ComPacT NS is part of the global Schneider Electric Environmental Program.
