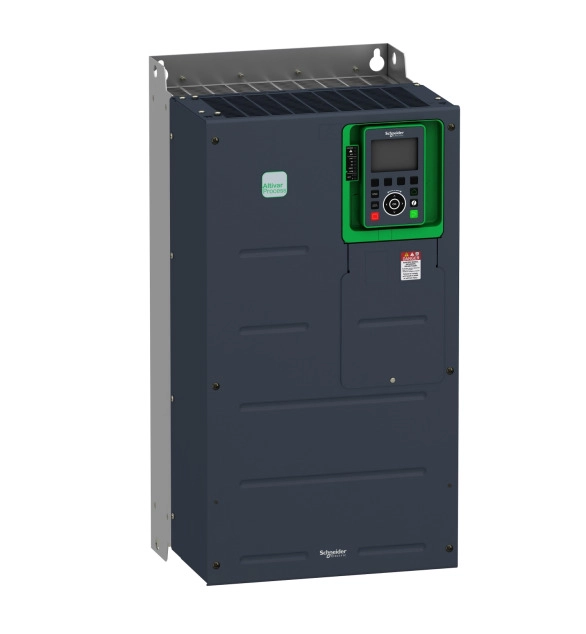

СКУ: ATV930D45Y6
ATV930IP00 45KW 500V-690V VARIABLE SPEE
-
Brand
Schneider Electric
-
Supporting protocol for SERCOS
FALSE
-
Supporting protocol for INTERBUS-Safety
FALSE
-
Supporting protocol for AS-Interface Safety at Work
FALSE
-
Supporting protocol for DeviceNet Safety
FALSE
-
Supporting protocol for Foundation Fieldbus
FALSE
-
Supporting protocol for SafetyBUS p
FALSE
-
Supporting protocol for PROFINET CBA
FALSE
-
Supporting protocol for PROFIsafe
FALSE
-
Supporting protocol for ASI
FALSE
-
Supporting protocol for TCP/IP
FALSE
-
Supporting protocol for KNX
FALSE
-
Supporting protocol for INTERBUS
FALSE
-
Supporting protocol for Modbus
FALSE
-
Supporting protocol for Data-Highway
FALSE
-
Supporting protocol for LON
FALSE
-
Supporting protocol for other bus systems
TRUE
-
Supporting protocol for SUCONET
FALSE
-
With control element
TRUE
-
Number of HW-interfaces parallel
-
Number of interfaces PROFINET
-
Number of HW-interfaces other
-
Number of HW-interfaces serial TTY
-
Supporting protocol for EtherNet/IP
TRUE
-
Supporting protocol for CAN
TRUE
-
Number of HW-interfaces RS-422
-
Number of HW-interfaces industrial Ethernet
-
Number of analogue outputs
2
-
Number of digital inputs
8
-
Number of HW-interfaces USB
-
Number of HW-interfaces RS-232
-
Number of digital outputs
1
-
Degree of protection (IP)
EV006406
-
With PC connection
FALSE
-
Supporting protocol for BACnet
FALSE
-
With optical interface
TRUE
-
Supporting protocol for PROFIBUS
TRUE
-
Supporting protocol for DeviceNet
TRUE
-
Type of converter
EV009484
-
Max. output frequency
500
-
Mains frequency
EV008015
-
Number of phases input
EV000069
-
Number of phases output
EV000069
-
Relative symmetric net voltage tolerance
10
-
Relative symmetric net frequency tolerance
5
-
Integrated breaking resistance
FALSE
-
Application in industrial area permitted
TRUE
-
Application in domestic- and commercial area permitted
TRUE
-
Mains voltage
380
-
Supporting protocol for PROFINET IO
TRUE
-
Number of analogue inputs
3
-
4-quadrant operation possible
TRUE
-
Max. output voltage
480
-
Height
673
-
Width
226
-
Number of HW-interfaces RS-485
3
-
Depth
274
-
Max. output at quadratic load at rated output voltage
37
-
Max. output at linear load at rated output voltage
37
-
Nominal output current I2N
74.5
This soft starter belongs to the Altivar Soft Starter ATS430 range which is intended to smoothly start and stop asynchronous motors supplied from 208 to 600V. With an operational rated current of 62A, it supplies motor from 15 to 37kW according to mains voltage. With an efficiency rating of 99.5%, torque control, high stress resistance, and complete monitoring, the ATS430 provides the essentials for effectiveness. Altivar Soft Starter ATS430 delivers best in class motor control with its torque control, the original by Schneider Electric. ATS430 provides complete system monitoring, including the motor, application, power and energy with an accuracy greater than 95%. The cybersecurity standards for ATS430 are met by incorporating best practices that help minimize downtime. Dimensions are 160mm (width), 230mm (depth), 283mm (height) and it weighs 6.4kg. ATS430 uses plastic with more than 20% bio-based content, and aluminum is ASI-certified. Altivar Soft Starter ATS430 is designed for applications such as pumps, fans, compressors, conveyors, and mixers. It conforms to IEC/EN 60947-4-2 and has received CE, cULus, UKCA, RCM, KC, EAC and CCC certifications. Some accessories are available, including an IP65 or IP43 remote mounting kit for installing a plain text or graphic display terminal on the enclosure door. The packaging is made from recycled cardboard and incorporates less single-use plastic. The ATS430 soft starters shall be mounted vertically inside an enclosure. The Altivar Soft Starter ATS430 range offers torque control, reliable operation, and simplicity. It also integrates essential features for the future, including cybersecurity best practices and condition monitoring. ATS430 delivers the essentials for effectiveness while lowering the overall equipment costs.
