СКУ: PKY16F723
Контакт Panel socket angled PK PratiKa connect 1
-
Brand
Schneider Electric
-
Material
EV000139
-
Number of poles
4
-
Cable entry
EV004016
-
Identification colour
EV000233
-
Clock hour position
6
-
Military model
FALSE
-
Voltage according to EN 60309-2
EV009026
-
Angle of plug
EV000164
-
Phase inverter
FALSE
-
Surface treatment contacts
EV000191
-
Contact material
EV006576
-
IEC-amperage
16
-
Degree of protection (IP)
EV006418
-
RAL-number
-
Connection system
EV005434

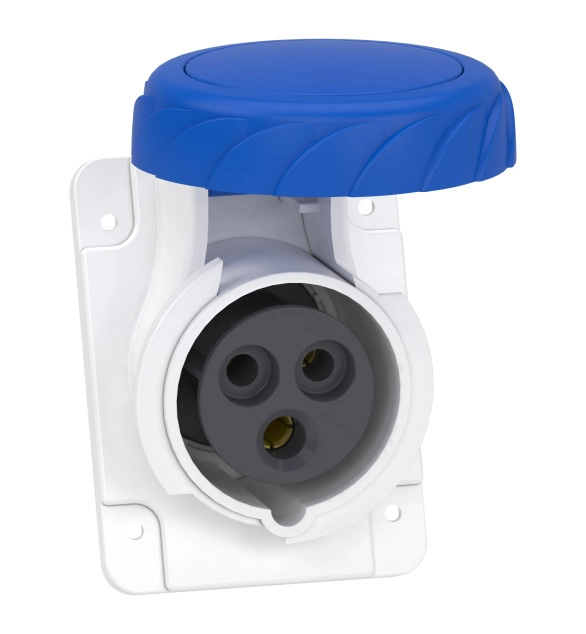

Experience the Mureva PK/PratiKa angled panel-mounted socket with fast connection. It has a 3P+N+E outlet pole configuration. The cable entries are suitable for both flexible and rigid cables. The clock position of contact is 6h. Its Ue rated operational voltage is 400VAC at 50/60Hz and its Ie rated operational current is 16A. The dimensions are (W) 90mm x (H) 100mm x (D) 106mm. It reaches IP67 degree of protection. The fire resistance is 850°C. It is made up of self-extinguishing engineering polymer. The color of the product is grey (RAL 7035). Mureva PK industrial plugs and sockets expertly combine high performance with ease of installation and practicality. It is designed with providing exceptional levels of protection and ergonomics in mind. The product complies with the EN 60309-1, EN 60309-2 standards.
