СКУ: AP4424A

APC Netshelter Автоматичен превключвател за прехвърляне за рак, 2U, 32A, 230V, 2 IEC 309 IN, 16 C13, 2 C19 OUT, 50/60 Hz

  • Brand
    APC Brand
  • Colour
    EV000206
  • Number of phases
    1
  • Supply voltage
    230
  • With display
    FALSE
  • Type of electric connection
    EV000154
  • Mounting dimension (standardised)
    EV000154
  • Ampere meter
    TRUE
  • Electrical connection
    EV020299
  • Evaluation
    EV000154
  • Mains filter
    FALSE
  • Control function
    TRUE
  • With LED indication
    FALSE
  • Temperature measurement
    FALSE
  • With mounting material
    TRUE
  • With fuse
    TRUE
  • SNMP
    TRUE
  • Switchable
    TRUE
  • With meter
    FALSE
  • Number of height units
    2
  • Mounting direction
    EV002314
  • Over voltage category
    EV000599
  • Length
    236
  • Width
    432
  • Depth
    236
  • Cable length
    2.43
  • Height
    88
  • Number of other socket outlets
  • Number of socket outlets with earth pin
  • Number of UK BS1363 sockets
  • Number of C13 socket outlets
  • Number of C20 socket outlets
  • Number of socket outlets Swiss standard type 25
  • Number of socket outlets Swiss standard type 23
  • Number of socket outlets Swiss standard type 15
  • Number of socket outlets Swiss standard type 13
  • Number of miniature circuit breakers
  • Number of C19 socket outlets
  • Mounting size
  • Number of socket outlets with protective contact (SCHUKO)

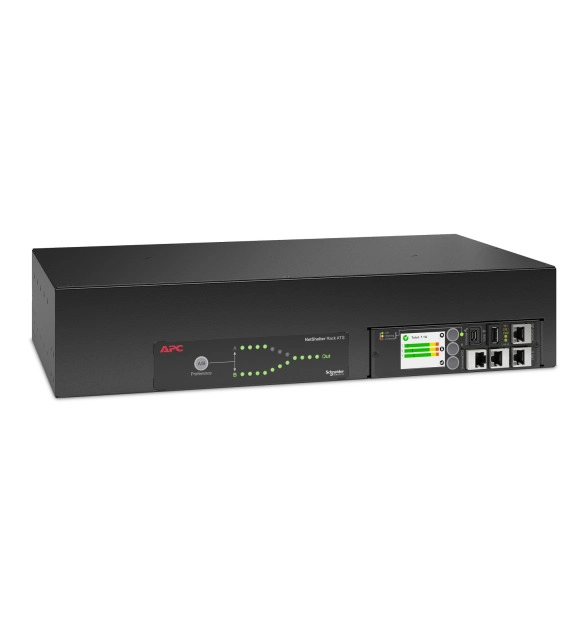

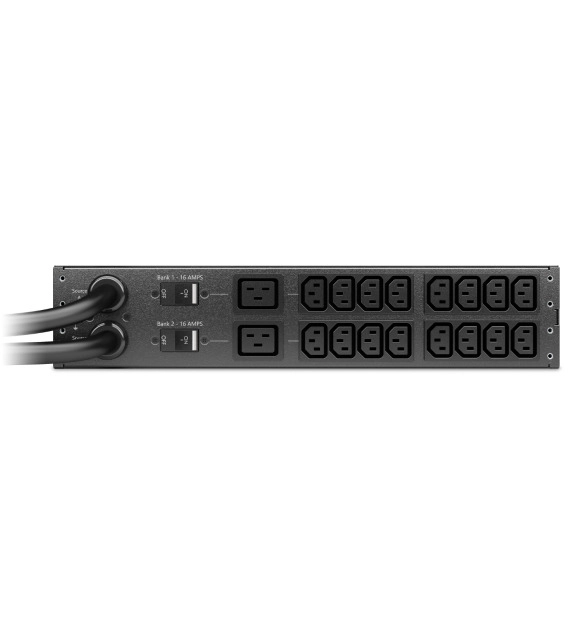

APC NetShelter Rack Automatic Transfer Switch (ATS) AP4424A is the Fifth-Generation range of high availability switches offering greater control of your IT equipment from Cloud to Edge. With Industry leading reliability, agility, and manageability the APC NetShelter Rack ATS provides redundant power to single-corded equipment loads in the IT rack. AP4424A is single phase 2U Rack ATS with 32A rated current, 230V rated voltage and 7400VA load capacity. It comes with inbuilt circuit breaker protection, 2 IEC 309 inlet and 16 IEC C13, 2 IEC C19 outlet sockets. This has been upgraded with APC NMC3 and various technical advancements for network port sharing, environmental monitoring and enhanced security. It has 2-years of standard warranty and 5-years of extended warranty for peace of mind and use for years to come. Users can access and configure Rack ATS through secure Web UI, SNMP, CLI and are fully compatible with EcoStruxure IT.
