Антихармоник PowerLogic PFC detuned реактор, 100kvar 190Hz (3.8) 7% 50Hz 400V | Spark & Co
  • 3D
|

СКУ: LVR07X00A40T

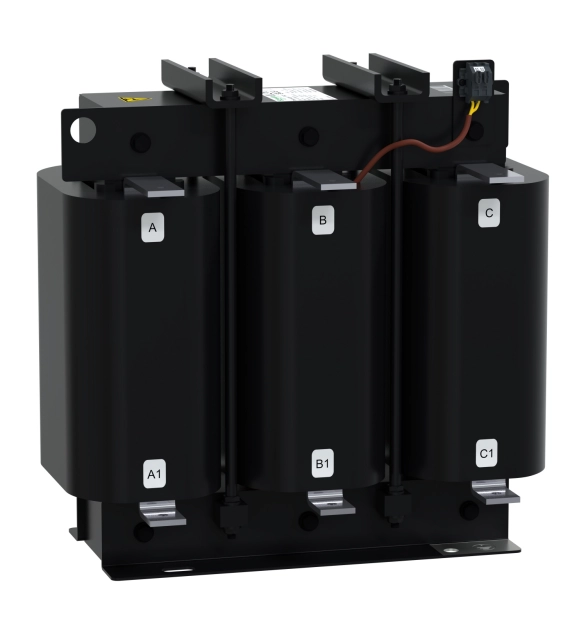

Антихармоник PowerLogic PFC detuned реактор, 100kvar 190Hz (3.8) 7% 50Hz 400V

  • Brand
    Schneider Electric
  • Max. rated operation voltage Ue
    400
  • Rated operation frequency
    50
  • Degree of protection (IP)
    EV006404
  • Number of poles, primary side
    3
  • Filtering factor
    7
  • Filter bank performance
    100
  • Rated current at AC
    144.33
  • Max. rated current (Ith) at rated voltage AC
    172

The VarPlus detuned reactor are designed to protect the capacitor by preventing the amplification of the harmonics present in the system. Capacitors and Reactors are configured in Series resonant circuit. Tuned so that the series resonant frequency is below the lowest harmonic frequency present in the system. This reactor is rated for 25 kVar output power with 3.8/190 Hz tuning order at 400V AC at 50 Hz. Relative impedance, 7 %. This component meet the standards IEC 60068. This component require a forced convection, a fan need to be added. The case dimensions are 220mm in height, 240mm in width and 160mm in depth. For a product weight of 15 kg.
