Advanced control unit, TeSys Ultra, 1P, 3 to 12A, protection & diagnostic, class 10, 24VDC coil | Spark & Co
  • 3D
|

СКУ: LUCC12BL

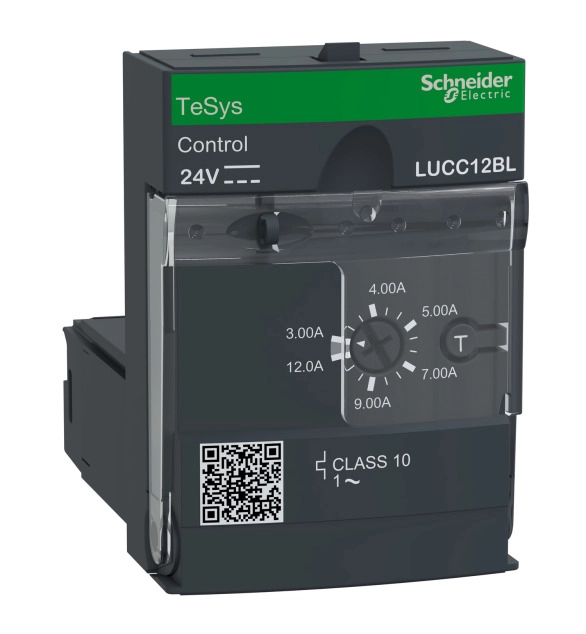

Advanced control unit, TeSys Ultra, 1P, 3 to 12A, protection & diagnostic, class 10, 24VDC coil

  • Brand
    Schneider Electric
  • Type of electrical connection of main circuit
    EV000415
  • Depth
    60
  • Degree of protection (IP)
    EV006415
  • Suitable for emergency stop
    FALSE
  • Voltage type for actuating
    EV000461
  • Rated control supply voltage Us at DC
    24
  • Supporting protocol for SERCOS
    FALSE
  • Supporting protocol for INTERBUS-Safety
    FALSE
  • Supporting protocol for AS-Interface Safety at Work
    FALSE
  • Supporting protocol for DeviceNet Safety
    FALSE
  • Supporting protocol for EtherNet/IP
    FALSE
  • Supporting protocol for Foundation Fieldbus
    FALSE
  • Supporting protocol for SafetyBUS p
    FALSE
  • Supporting protocol for PROFINET CBA
    FALSE
  • Supporting protocol for PROFINET IO
    FALSE
  • Supporting protocol for PROFIsafe
    FALSE
  • Supporting protocol for ASI
    FALSE
  • Supporting protocol for PROFIBUS
    FALSE
  • Supporting protocol for TCP/IP
    FALSE
  • Supporting protocol for CAN
    FALSE
  • Supporting protocol for INTERBUS
    FALSE
  • Supporting protocol for DeviceNet
    FALSE
  • Supporting protocol for Modbus
    FALSE
  • Supporting protocol for Data-Highway
    FALSE
  • Supporting protocol for LON
    FALSE
  • Supporting protocol for SUCONET
    FALSE
  • With transformer
    FALSE
  • Ambient temperature, upper operating limit
    70
  • External reset possible
    FALSE
  • Type of electrical connection for auxiliary- and control current circuit
    EV000415
  • Width
    45
  • Coordination class according to IEC 60947-4-3
    EV006627
  • Rail mounting possible
    TRUE
  • Supporting protocol for other bus systems
    FALSE
  • With fuse
    FALSE
  • With short-circuit release
    TRUE
  • Rated operation current at AC-3, 400 V
    12
  • Rated operation power at AC-3, 400 V
    2.2
  • Release class
    EV008931
  • Height
    66
  • Temperature compensated overload protection
    TRUE
  • Type of motor starter
    EV000154
  • Overload release current setting
    3
  • Number of auxiliary contacts as normally closed contact
  • Number of auxiliary contacts as normally open contact
  • Number of indicator lights
  • Number of command positions
  • Rated conditional short-circuit current, type 1, 480 Y/277 V
    3
  • Rated conditional short-circuit current, type 2, 230 V
    3
  • Rated operation current Ie
    3
  • Rated conditional short-circuit current, type 1, 600 Y/347 V
    12
  • Rated conditional short-circuit current, type 2, 400 V
    12

TeSys U control and diagnostic unit to be inserted in advanced power bases LUB120, LUB320, LUB380 to form a TeSys U starter controller, for 1-phase motor applications up to 2.2kW@400V. It provides full protection to motors with a rated current Ir 3-12A (Ir adjustable), overload tripping class 10, short circuit at 13 x Irmax, overcurrent at 14.2 x Ir, phase loss, insulation fault (protection of equipment only). It provides a thermal overload alarm to be used locally using a LUFDA module or remotely using a LULC module, and a test push button for overload simulation. To be used with a 24V DC voltage for the control of the starter (through the control terminals A1/A2 located in the power base). Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine).
