СКУ: PCSP300D5IP31

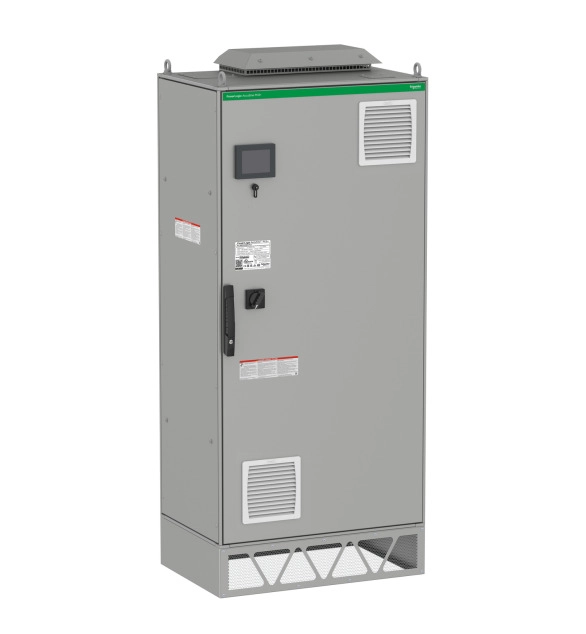

AccuSine PCS+ 300A 380-480 VAC IP31
-
Brand
Schneider Electric
-
Number of phases
3
-
Supporting protocol for CAN
FALSE
-
Voltage type of supply voltage
EV000460
-
With communication interface RS-232
FALSE
-
Supporting protocol for Modbus
TRUE
-
Depth
650
-
With communication interface RS-485
FALSE
-
Supply voltage
380
-
With communication interface Ethernet
TRUE
-
Application
EV010631
-
Width
900
-
Reduction blind power
249
-
Rated operation current Ie at AC-1
300
-
Rated operation current Ie at AC-15, 400 V
300
-
Rated operation current Ie at AC-3
300
-
Height
2091
This hardware is an active power correction solution, from AccuSine familly, to help stabilize electrical networks by providing harmonic mitigation and power factor correction, and load balancing. It is specifically designed for harsh electrical conditions, for heavy industrial applications including mission critical environments. This version is ingress protection IP31 and can be connected on Low Voltage networks rated 380 Volt to 480 Volt. It is specified for a standard Root Mean Square output current rating of 300 Amps. The enclosure is floor standing, allow cable entry from top or bottom and is delivered in RAL7035 light grey. This active power filter achieves above standards performance THDi less or equal to 3%, is certified to CE, UL, IBC 2015 AC156, EAC, RCM. And is designed to IEC 62477-1, IEC 61000-6-2, IEC 61000-6-4, IEC 61439-1, UL508 and IEEE 519-2014. Up to 10 units of different ratings can be paralleled, to achieve a maximum compensation of 3000A per CT set. Frame exterior dimensions are 900 millimetres in width, 600 millimetres in depth, 2100 millimetres in height and product weight 422 kg.
