СКУ: NU306630
2 Контакти, New unica, механизъм, 2P, 16A, Шуко, със защита, безвинтово свързване, боядисан, алуминий
-
Brand
Schneider Electric
-
Material
EV000139
-
Transparent
FALSE
-
Number of phases
1
-
Colour
EV000072
-
Frequency
50
-
Nominal voltage
230
-
Lockable
FALSE
-
Material quality
EV000403
-
Insulated mounting
FALSE
-
With signal lamp
FALSE
-
Imprint/indication
EV000494
-
With built-in USB power supply
FALSE
-
Eject-mechanism
FALSE
-
Rotated central insert
FALSE
-
Fault current protection
FALSE
-
Nominal current
16
-
Over voltage protection
FALSE
-
Mounting method
EV000383
-
With on/off switch
FALSE
-
Special power supply
EV006426
-
Compatible with Apple HomeKit
FALSE
-
Compatible with Google Assistant
FALSE
-
Compatible with Amazon Alexa
FALSE
-
Anti-bacterial treatment
FALSE
-
IFTTT support available
FALSE
-
With function lighting
FALSE
-
With orientation lighting
FALSE
-
Halogen free
TRUE
-
With enhanced contact protection
TRUE
-
With loop through function
FALSE
-
With miniature fuse
FALSE
-
For heavy conditions (according to VDE)
FALSE
-
Protective earth pin round
FALSE
-
Surface protection
EV000154
-
Number of units
2
-
Number of active pins (round)
2
-
With hinged lid
FALSE
-
Suitable for degree of protection (IP)
EV006405
-
Protective contact
TRUE
-
Label space/information surface
FALSE
-
Min. depth of built-in installation box
40
-
Surface finishing
EV006395
-
Model
EV002727
-
Number of modules (module system)
4
-
Impact strength
EV006810
-
Width of device
45
-
Connection type
EV000154
-
Type of fastening
EV010006
-
Metallic colour
TRUE
-
Depth of device
34
-
Height of device
90

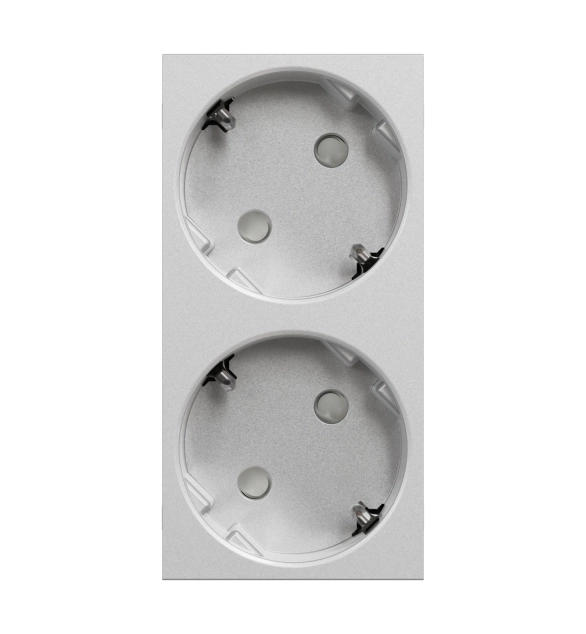

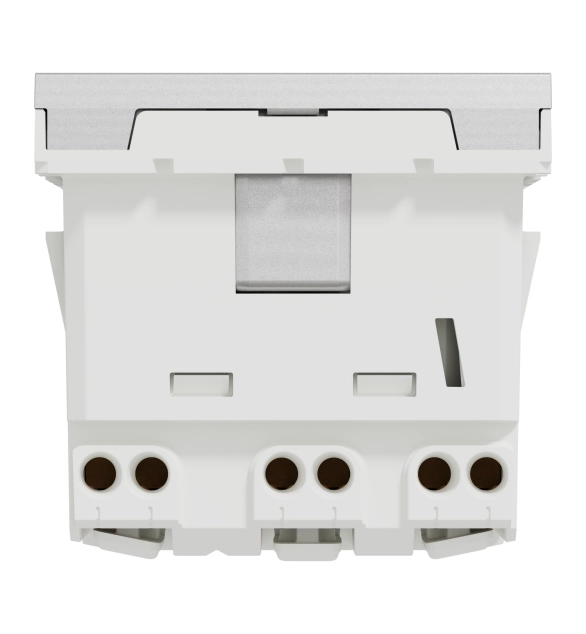

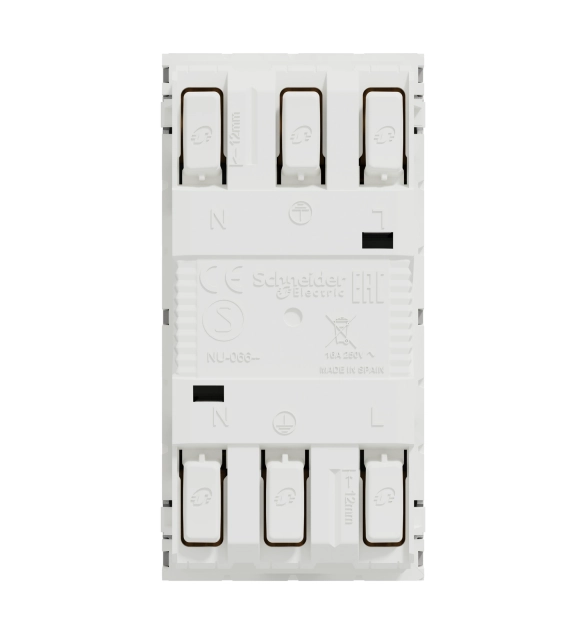

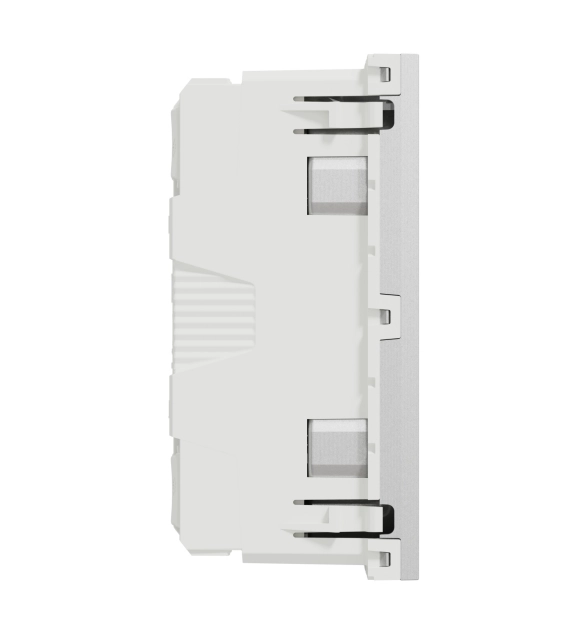

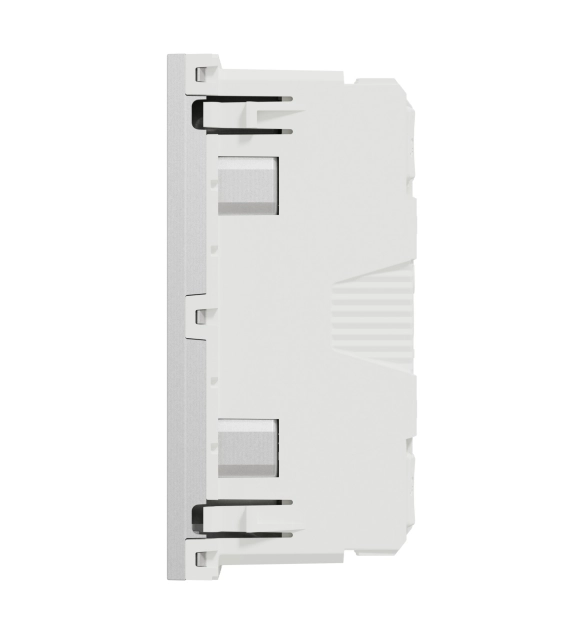

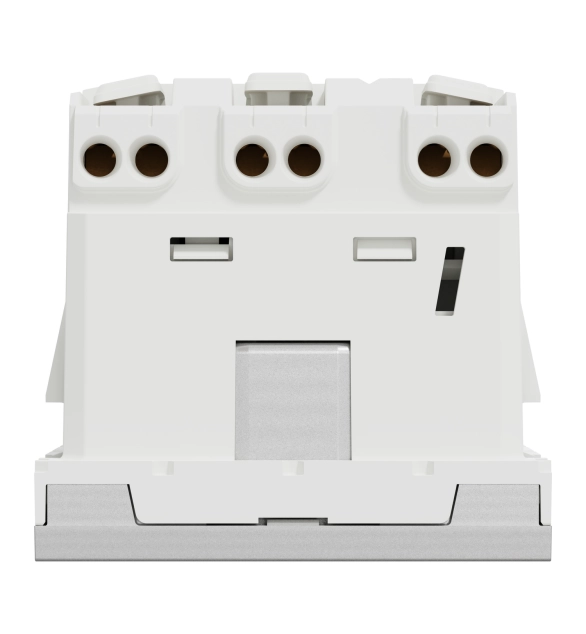

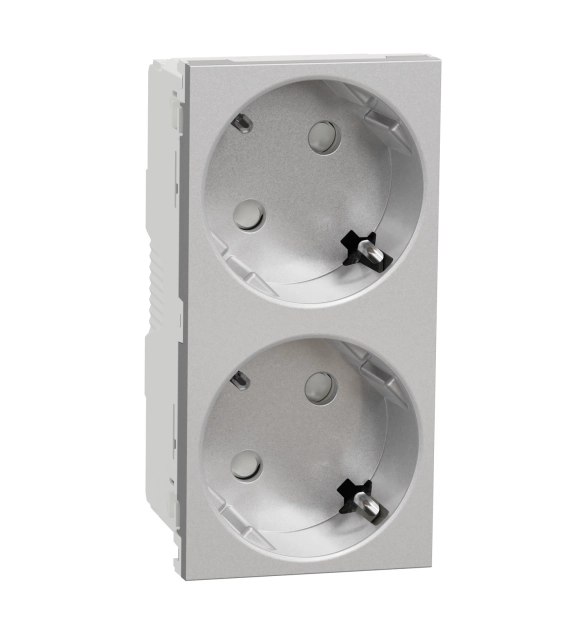

Power your electrical devices with the Schneider Electric New Unica 16A socket outlet. It respects the Schuko standard, and has a 2P+E pole configuration with shutters for added protection. The dielectric strength level, the voltage that the material this socket-outlet uses can withstand for a given wall thickness before dielectric breakdown, is 2000V. Its rated current is 16A. Clip-in this socket-outlet for the fixation. Its matching mounting box can be recessed into the surface of the wall with flush type. The surface finish is brilliant, gaining extra point for your interior design. The IP rating of this device is IP21D which is very high. Besides, it reaches IK04 protection level, which can help protect against impact. It has a flush design, which prevents dust accumulation. The device has 4 modules, and its operational voltage is 250VAC at 50/60Hz. It obtained DEMKO, EAC, SEMKO certificate. The color of the device is aluminium, and it has a glossy surface finish. New Unica includes a suite of new designs, colors and materials. Users benefit from beautiful design that match their style and innovative products. It also has EAC, SEMKO, and DEMKO certifications. For installation, the release buttons of the screwless terminal allow for better ergonomics which saves time, and they have different colors for easy identification. The dimensions of the product are (W) 45mm x (H) 90mm x (D) 39.4mm. Its embedding depth is 30mm. It has an IP21D degree of protection. The device operates in temperatures between -5°C to 35°C. New Unica is a modular range that offers a wide variety of products and functions with a sleek and timeless aesthetic that integrate well with other installations. It is designed with clever features to be flexible, easy to understand and quick to install, providing convenient solutions for customer requirements.
