СКУ: SSM1A36BD
1Phase SS relay 6A zero 4 32V-48 600V
-
Brand
Schneider Electric
-
Number of phases
1
-
Voltage type for actuating
EV000509
-
Rated control supply voltage Us at AC 50HZ
48
-
Rated control supply voltage Us at AC 60HZ
48
-
Modular version
TRUE
-
Operating voltage
48
-
Rated control supply voltage Us at DC
4
-
Switching at zero-crossing
FALSE
-
Rated operation current Ie at AC-53a
6
-
Rated operation current Ie at AC-51
6
-
Rated operation current Ie at AC-53b
6
-
Rated operation current Ie at AC-1
6
-
Rated operation current Ie at AC-3
6

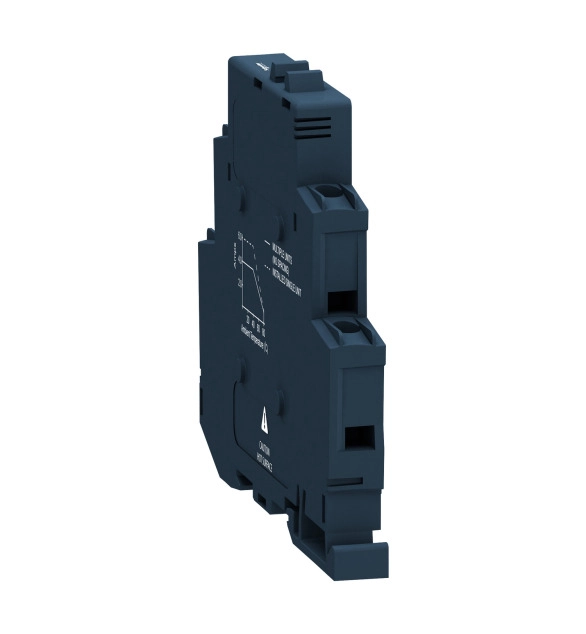

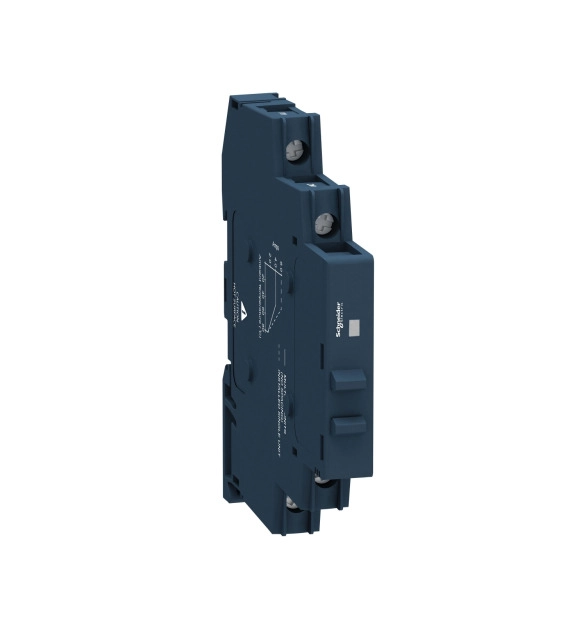

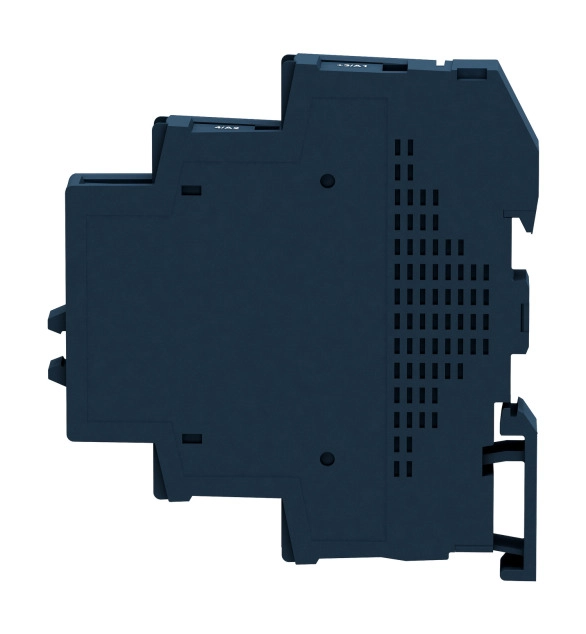

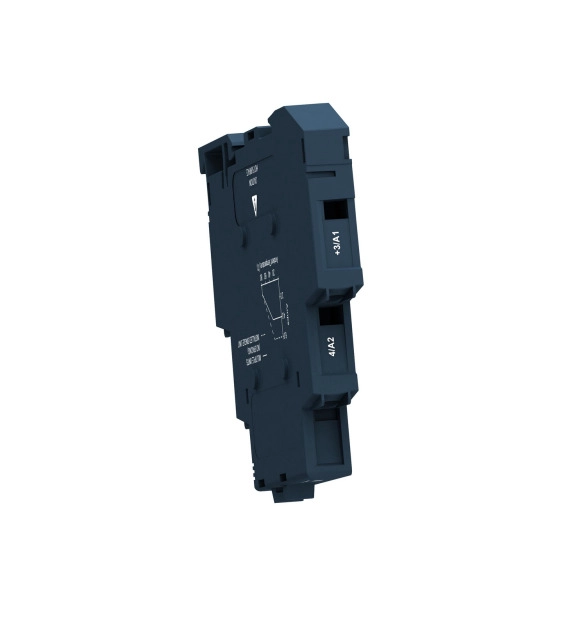

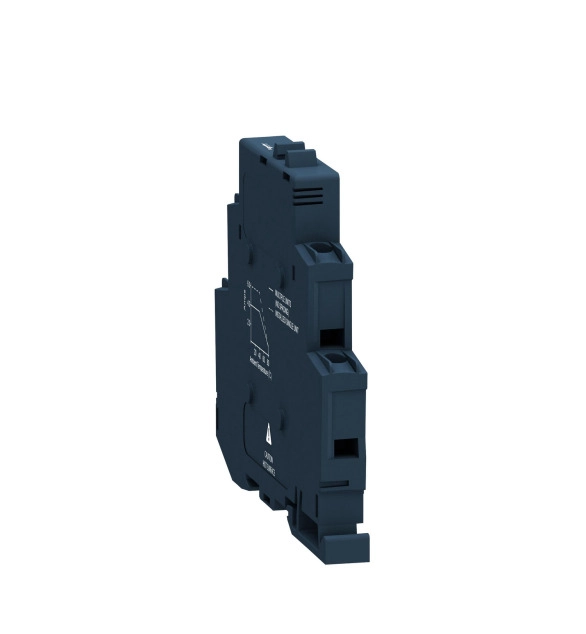

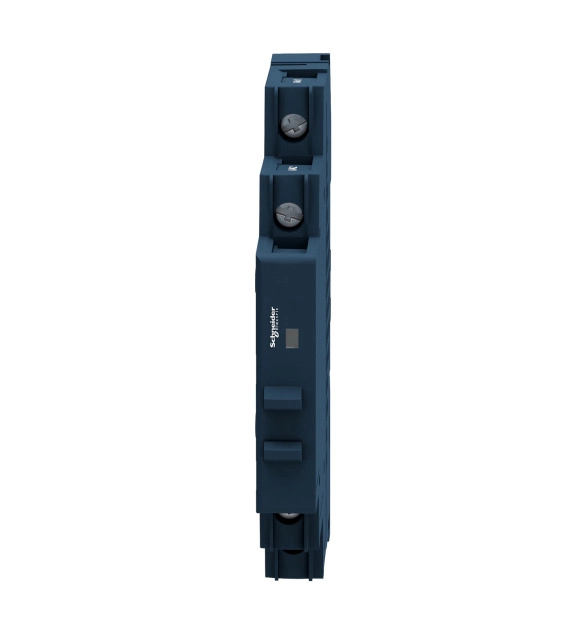

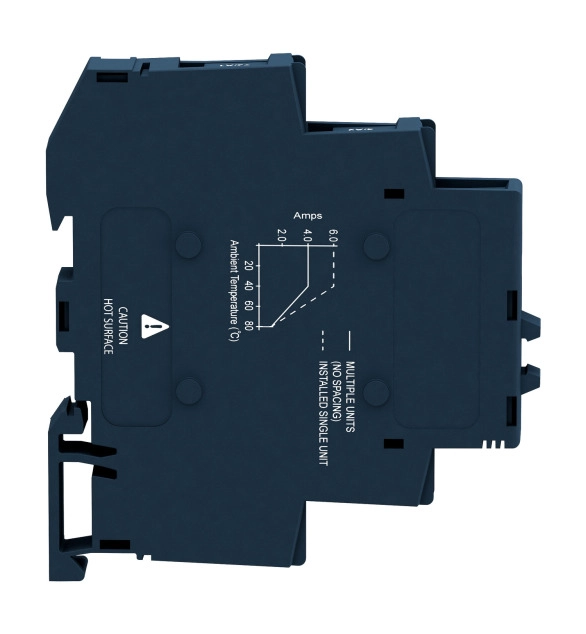

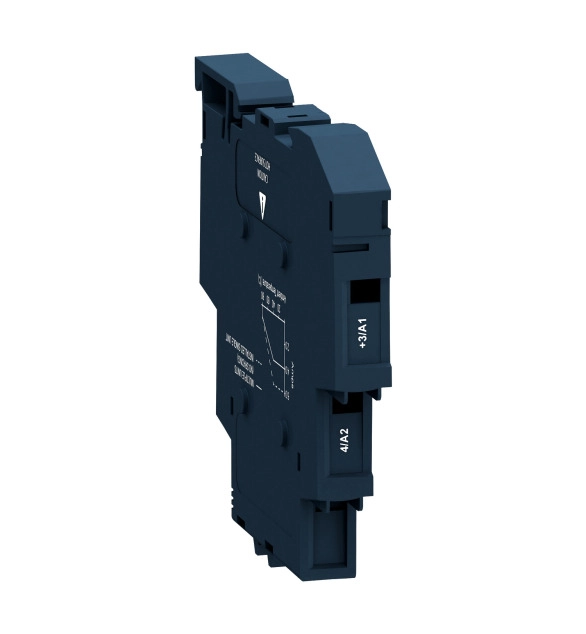

Harmony SSM solid state modular DIN rail single-phase relay is rated 6A, is controlled with a 4V to 32V DC input, has a rated load voltage of 48V to 600V AC with zero voltage switching, ideal for resistive loads. Additionally has a visual indicator showing the status of its input. Integrated heatsink ensures optimal performance while reducing the need for additional spare parts. Compatible also silent and reliable thanks to the absence of moving contacts. Its clear schematic on the side of the socket enables easier wiring and maintenance.
