СКУ: KSA630ABT4
Захранваща кутия 630A централна
-
Brand
Schneider Electric
-
Colour
EV000202
-
Number of poles
4
-
Degree of protection (IP)
EV006420
-
RAL-number
9001
-
Model
EV002646
-
Width
386
-
Power supply position
EV000213
-
Rated voltage at AC 50 Hz
690
-
Rated current at AC 50 Hz
630
-
Length
1001
-
Height
513

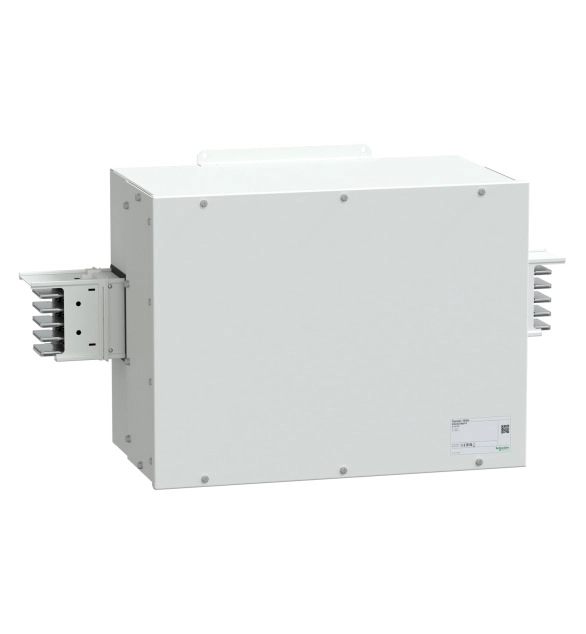

Canalis feed-unit for KSA. It is compatible with FL21 gland plate. The rated operational voltage is from 230VAC to 690VAC. The rated operational current is 500A and 630A. The bar material of feed-unit is aluminium with white RAL 9001 surface treatment. Busbar mounting by screws with central mounting location, connection by Lug terminals. Designed with 1 circuit allowing. It provides IP55 protection which conforming to IEC 60529 standard. IK08 conforms to IEC 62262. It is compliant with both IEC 60439-2 and IEC 61439-6. It is compliant with Schneider Electric Environmental Data Program (RoHS, REACh, Product Environmental Profile, End of Life Instructions).
