СКУ: C1042D100
Защита TRIP UNIT NSX100 AC 4P4D 100A 2.2
-
Brand
Schneider Electric
-
Number of poles
4
-
Rated permanent current Iu
100
-
Type of motor protection
EV014005
-
Voltage type for actuating
EV009206
-
Short-circuit release function
EV003977
-
With ground fault protection function
FALSE
-
Overload release current setting
40
-
Initial value of the undelayed short-circuit release - setting range
1500
-
End value adjustment range undelayed short-circuit release
1500

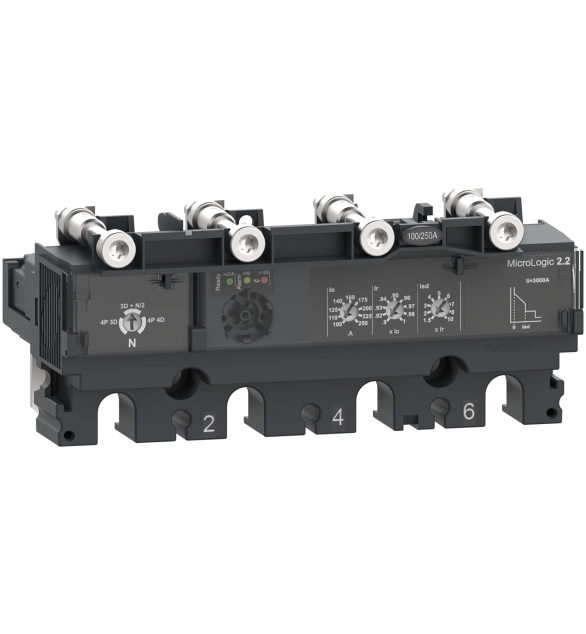

This MicroLogic 2.2 is a 4 poles 4d electronic trip unit used on ComPacT NSX 100/160/250 circuit breakers. This 100A rating electronic trip unit is an optimum choice for all standard and specific applications. It embeds an adjustable long time protection against overloads. It provides also an adjustable short-time protection and a fixed instantaneous protection against short-circuits. MicroLogic 2.2 indicates overloads with Alarm LEDs. The green Ready LED flashes if the circuit breaker is ready to trip. This product is part of our EcoStruxure Power architecture if associated with PowerTag NSX and ComPacT NSX basic frame.
