СКУ: 13364
Закрепващ елемент / носач за клемен блок - 12 модула
-
Brand
Schneider Electric
-
With mounting plate
FALSE
-
Material housing
EV000139
-
DIN-rail
TRUE
-
Mounting method
EV000384
-
With lock
FALSE
-
EMC-version
FALSE
-
Type of cover
EV004216
-
Extension possible
TRUE
-
Width in number of modular spacings
18
-
RAL-number
7035
-
Height
460
-
Degree of protection (IP)
EV006421
-
Transparent cover/door
TRUE
-
Type of closure
EV000154
-
Cover model
EV000116
-
Signal passing door
TRUE
-
Colour
EV000270
-
Width
448
-
Depth
160
-
Internal depth
88
-
Earthing terminal block
TRUE
-
Neutral terminal block
TRUE
-
Number of rows
2

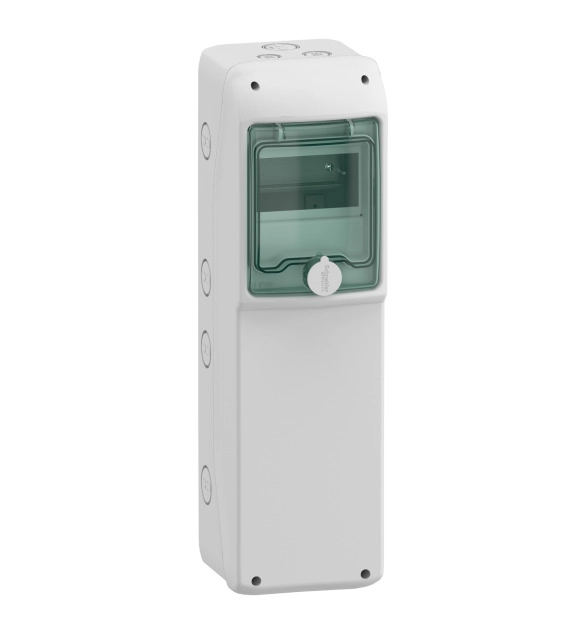

This Mureva Enclosure weatherproof enclosure is a surface mounted versatile enclosure for power outlet. It is composed of 1 row of 18 modules of 18mm. It can accomodate all types of modular or non-modular switchgear. The IP degree of protection is IP65. This enclosure is dedicated to indoor or outdoor waterproof installation. It is provided with a transparent green door for modular devices. The colour of enclosure is light grey (RAL 7035). It is intended for installation in residential, small buildings and industry. The cables can enter by the top or the bottom of the enclosure via 17 pre-cutouts. It is equipped with a back plate and a front cover with notch. A marking kit are also delivered within the product. The electrical insulation class is class II (double insulated). The overvoltage category is class II. The dissipated power is 39W. The In rated current is up to 90A. This product complies with the IEC 60670-1 and -24 standards. The dimensions are (W) 448mm x (H) 460mm x (D) 160mm. The product weight is 3.4kg. The material is a self-extinguishing polymer material. Its resistance to flames and to abnormal heat is 650°C as per IEC 60695-2-1. It is ultraviolet resistant. The IK degree of protection is IK09. The operating temperature is -25°C to 40°C.
