СКУ: KSA250DLF401

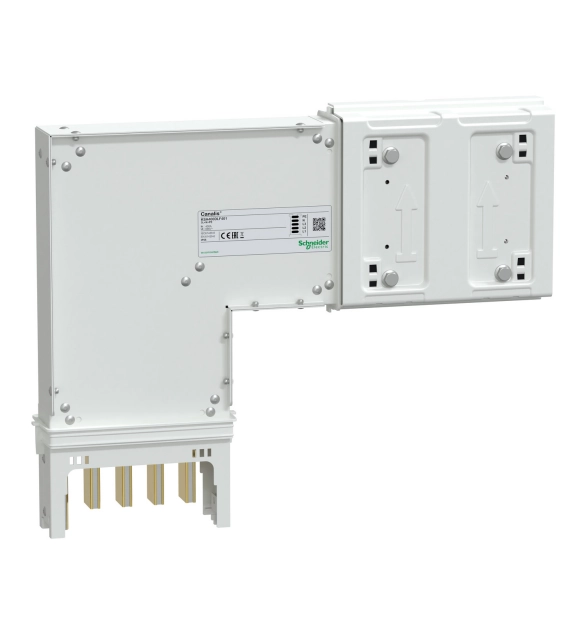

Връзка - Коляно, Canalis KSA250, алуминий, 100/160/250A, фиксирани размери (A/B 250mm), за насочване надолу, 3L+N+PE, бяло RAL9001

  • Brand
    Schneider Electric
  • Colour
    EV000202
  • Degree of protection (IP)
    EV006420
  • Number of poles
    5
  • RAL-number
    9001
  • Flexible
    FALSE
  • Number of conductors (without earthing)
    4
  • Rated voltage at AC 50 Hz
    230
  • Model
    EV009899
  • Rated current at AC 50 Hz
    250
  • Length
    0.29

This is a tap-off unit for direct connection on Canalis KBA, KBB and KDP busbar trunkings. Canalis KBA, KBB and KDP are designed for lighting and power socket distribution. The rated operational current is 16A at 35 ℃. The operational voltage is from 230VAC 50/60Hz to 240VAC 50/60Hz. This tap-off unit is pre-wired with SO5Z1-F 3x1.5mm² cable and 1m long. It is a single phase tap-off unit with a fixed polarity L3+N+PE. An additional twisted pair carries the signal for DALI protocol (D+/D-). The lock is in brown colour. It provides IP55 protection conforming to IEC 60529 standard, which guarantees trunking protection against splashes and dust. It provides IK06 protection conforming to IEC 62262 standard against external mechanical impacts. Sold in lots of 10 units. Canalis products are compliant with IEC/EN 61439-6 standard. It is non flame propagating as per the recommendations of IEC 60332-3 standard. All the insulating and plastic materials are halogen free and have enhanced fire withstand capabilities (IEC 60695-2).
