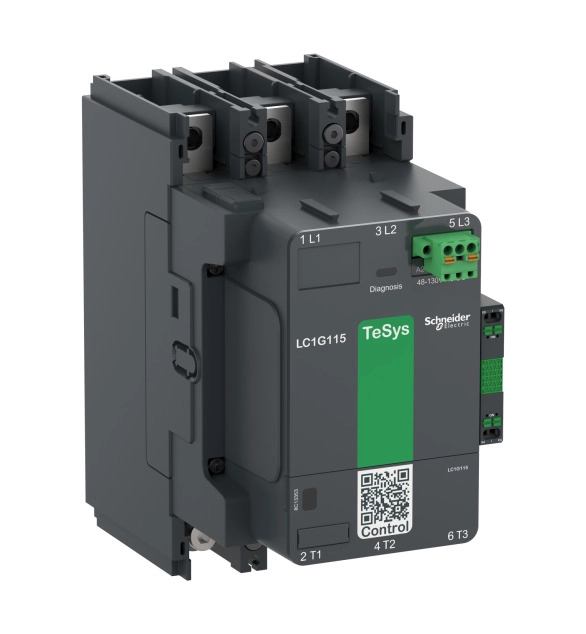

Високомощен контактор, TeSys Giga, 3 полюса (3NO), AC-3 <=440V 115A, стандартна версия, 48…130V широколентова AC/DC намотка | Spark & Co
  • 3D
|

СКУ: LC1G115EHEN

Високомощен контактор, TeSys Giga, 3 полюса (3NO), AC-3 <=440V 115A, стандартна версия, 48…130V широколентова AC/DC намотка

  • Brand
    Schneider Electric
  • Voltage type for actuating
    EV000509
  • Type of electrical connection of main circuit
    EV008864
  • Rated control supply voltage Us at AC 50HZ
    48
  • Rated control supply voltage Us at AC 60HZ
    48
  • Rated control supply voltage Us at DC
    48
  • Number of auxiliary contacts as normally closed contact
    1
  • Number of auxiliary contacts as normally open contact
    1
  • Modular version
    FALSE
  • Rated operation power at AC-3, 400 V
    55
  • Number of normally closed contacts as main contact
  • Number of normally open contacts as main contact
    3
  • Rated operation power NEMA
    75
  • Rated operation current Ie at AC-1, 400 V
    250
  • Rated operation current Ie at AC-3, 400 V
    115
  • Rated operation current Ie at AC-4, 400 V
    115
  • Rated operation power at AC-4, 400 V
    55

TeSys Deca contactor, 4 poles (2NO/2NC),for load control applications in category AC-1. and for non-inductive load control applications up to 80A@60℃. It provides a 220V 50/60Hz standard AC coil,without built-in auxiliary contact, connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures reliability and durability to standard applications. Very compact (55mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EN).
