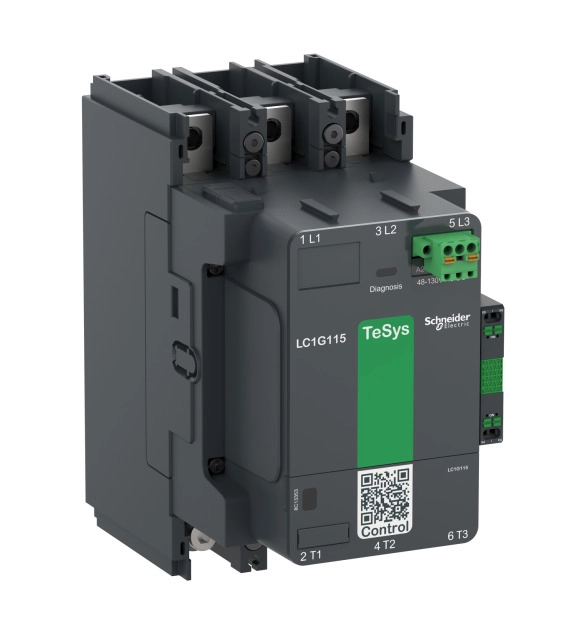

Високомощен контактор, TeSys Giga, 3 полюса (3NO), AC-3 <=440V 115A, стандартна версия, 100…250V широколентова AC/DC намотка | Spark & Co
  • 3D
|

СКУ: LC1G115KUEN

Високомощен контактор, TeSys Giga, 3 полюса (3NO), AC-3 <=440V 115A, стандартна версия, 100…250V широколентова AC/DC намотка

  • Brand
    Schneider Electric
  • Voltage type for actuating
    EV000509
  • Type of electrical connection of main circuit
    EV008864
  • Rated control supply voltage Us at AC 50HZ
    48
  • Rated control supply voltage Us at AC 60HZ
    48
  • Rated control supply voltage Us at DC
    48
  • Number of auxiliary contacts as normally closed contact
    1
  • Number of auxiliary contacts as normally open contact
    1
  • Modular version
    FALSE
  • Number of normally closed contacts as main contact
  • Number of normally open contacts as main contact
    3
  • Rated operation current Ie at AC-4, 400 V
    150
  • Rated operation power at AC-4, 400 V
    75
  • Rated operation power at AC-3, 400 V
    75
  • Rated operation power NEMA
    100
  • Rated operation current Ie at AC-1, 400 V
    275
  • Rated operation current Ie at AC-3, 400 V
    150

TeSys Deca contactor, 4-pole (4NO), for non-inductive load applications up to 125A/690V AC-1. It provides a 24V 50/60Hz AC coil, power connection by screw terminals, control connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (96mm width), DIN-rail mounting or screw fixing. Without build-in auxiliary contacts, side and front mounting auxiliary contact blocks available (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).
