СКУ: VGS211F-80CS

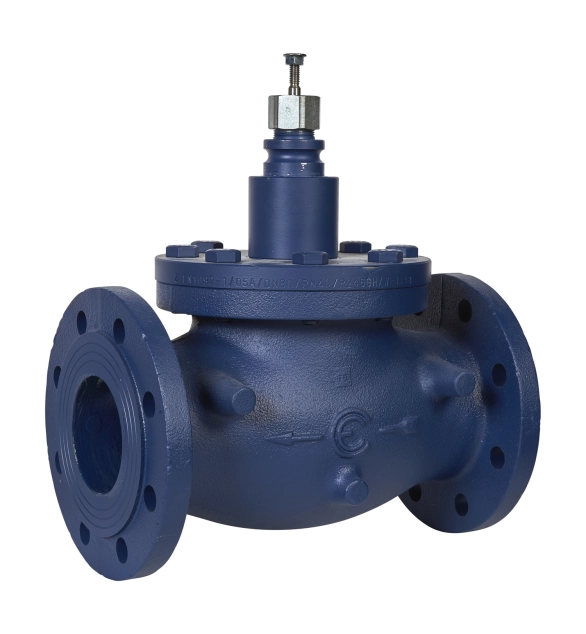

VGS211F Globe Valve for Steam upto 200 °C, 2-Way, Flanged, DN80, Kvs 110 m?/h, Stainless Steel Trim, Stem Down Closed.
-
Brand
Schneider Electric
-
Suitable for heating
TRUE
-
Suitable for cooling
TRUE
-
Surface protection
EV006034
-
Connection 1
EV000106
-
Flange compression class
EV020104
-
Article compression class
EV020104
-
Suitable for process water
TRUE
-
Characteristic curve
EV021552
-
Leakage loss of Kvs value
0.02
-
Suitable for tap water
TRUE
-
Automatic flow control
FALSE
-
Min. medium temperature (continuous)
-10
-
Material housing
EV000117
-
Material quality
EV020188
-
Outer pipe diameter connection 1
80
-
Nominal diameter connection 1
EV020216
-
Stroke length
45
-
Max. medium temperature (continuous)
200
-
Kvs value
110
This solid state DIN rail mounted relay belongs to the Schneider Electric Harmony solid state relays range. This electrical relay mounts on 35mm DIN rail and comes with a secure mounting latch. This is a 45A power rated relay with pluggable spring input contactor type configuration and zero voltage switching. This single-phase relay has a IP20 built-in heat sink and a built-in transient overvoltage protection. It is controlled with a 4Vdc to 32Vdc input, has a rated load voltage of 48Vac to 600Vac. It also has a LED input voltage status indicator and clip-in legend for easy identification. It weighs 0.507Kg and its dimensions are, 45mm wide, 154.4mm deep, 111.5mm high. It is the ideal solution for packaging, plastic molding, textile, and heating furnace applications. This relay conforms to international standards like EN/IEC 60068, IEC 61373, UL 508, CSA C22.2 No 14-13 and certifications like UL and CSA. Besides the existing standard screw connection for input and output, SSD provides more wiring options like the spring or screw pluggable input connectors, and telescopic or clamp cage output terminals.
