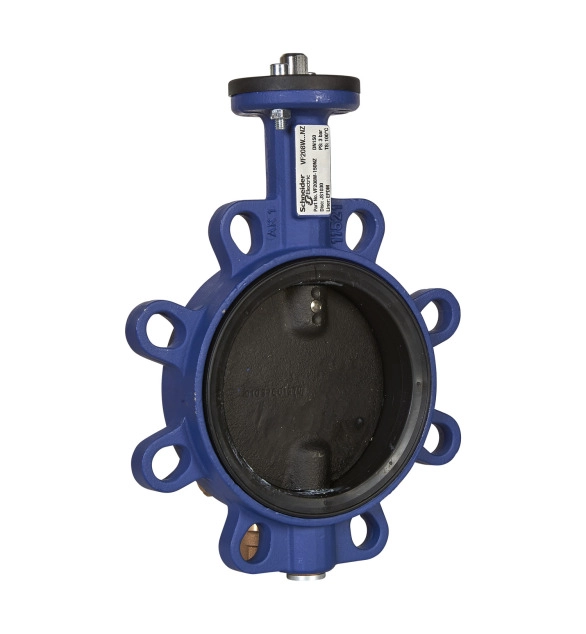

VF208W Butterfly Valve, 2-Way, DN150, Wafer Flanged, Zinc Plated Disc, EPDM Liner, Kvs 1790 m?/h, Max ?P 300 kPa | Spark & Co
  • 3D
|

СКУ: VF208W-150NZ

VF208W Butterfly Valve, 2-Way, DN150, Wafer Flanged, Zinc Plated Disc, EPDM Liner, Kvs 1790 m?/h, Max ?P 300 kPa

  • Brand
    Schneider Electric
  • Material housing
    EV000154
  • Material quality
    EV000154
  • Flange compression class
    EV020104
  • Article compression class
    EV020104
  • Surface protection
    EV001753
  • Material quality valve butterfly
    EV000154
  • VdS quality mark
    FALSE
  • Housing lining
    EV020656
  • Type approval according to BBR/EKS
    FALSE
  • Material valve butterfly
    EV000154
  • Valve butterfly lined
    FALSE
  • KIWA certified
    FALSE
  • Gastec QA mark
    FALSE
  • Connections
    EV000154
  • Permitted by NCP
    FALSE
  • Operation
    EV000154
  • Sealing
    EV006730
  • LPCB quality mark
    FALSE
  • FM quality mark
    FALSE
  • Standard
    EV021181
  • ULC quality mark
    FALSE
  • UL quality mark
    FALSE
  • Valve design
    EV020476
  • Fire-safe
    FALSE
  • Material primary spindle seal
    EV006730
  • Material quality spindle
    EV000154
  • Material spindle
    EV000166
  • Medium temperature (continuous)
    -10
  • Outer pipe diameter all connections
    150
  • Nominal diameter
    EV020219
  • Length operating element
    56
  • Kvs value
    1790
  • Construction length
    352
  • Height operating element
    212
  • Diameter handwheel
    142

The VF208W is a butterfly valve for the isolation and control of water for HVAC systems. The valve can be operated either by an electric actuator or hand using a handlever. Nodular iron body with a full EPDM liner provides a long life and high corrosion resistance. Valve size: DN15, ISO Wafer Flange, uncharacterized flow, kvs: 1790 m³/h. The thick EPDM liner/seat provides tight shut off and zero leakge, for a better energy saving. Maintenance free, double sealing of stem, centrical disc bearing. Constructed and flanged to a PN16 pressure class. ΔPm of maximum 300 Kpa. Zinc coated Disc. EPDM seals provide a working temperature range of -10 °C to + 100 °C, the soft seat seal ensures a tight close off with no leakage. High flow capacity, non characterized flow curve. Dew point barrier fitted on actuator mounting flange. No linkage kits required. Fits to MF40 Actuators.
