СКУ: NSYCVF560M230PF

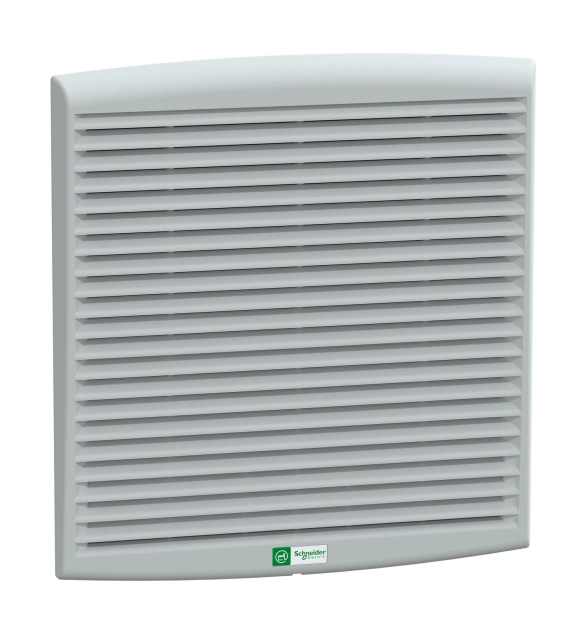

Вентилатор с решетка Filterfan 560m3/h 230V IP54
-
Brand
Schneider Electric
-
EMC-version
FALSE
-
RAL-number
7035
-
Colour
EV000270
-
Voltage type
EV000460
-
Degree of protection (IP)
EV006419
-
Degree of protection (NEMA)
EV022254
-
Depth
161
-
Suitable for wall built-in
FALSE
-
Suitable for 19 inch rack mounting
FALSE
-
Air circulator
TRUE
-
With protective cover
TRUE
-
Mounting method
EV002068
-
Operating voltage at AC 50 Hz
230
-
Operating voltage at AC 60 Hz
230
-
Built as slide-in ventilator
TRUE
-
Roof ventilator
FALSE
-
With filter
TRUE
-
Number of fans
1
-
Height
336
-
Width
316
-
Noise emission
59
-
Volume flow, freeblowing
562
-
Rated power
68
This product is a forced air ventilation fan that is designed to provide reliable and efficient cooling It is made of injected thermoplastic (ASA PC) and is available in grey (RAL 7035) color The fan has a ball bearing type and a maximum pressure of 140 Pa It has a power range of 68 W 50 Hz and 85 W 60 Hz, and a free flow rate of 562 m3/h at 50 Hz and 586 m3/h at 60 Hz It can be used in ambient air temperatures ranging from -15 to 60°C It has a terminal block and comes with a filter, an outlet grille, and two protective grilles on the front and rear surfaces It has an IP54 degree of protection and a noise level of 59-59 dB The cut-out dimensions of the fan are 291 x 291 mm This fan also comes with an anti-insect filter included Protection IP54.
