СКУ: NSYCVF850M115PF
Вентилатор с решетка 850м3/н 115V IP54
-
Brand
Schneider Electric
-
EMC-version
FALSE
-
RAL-number
7035
-
Colour
EV000270
-
Voltage type
EV000460
-
Degree of protection (IP)
EV006419
-
Degree of protection (NEMA)
EV022254
-
Suitable for wall built-in
FALSE
-
Suitable for 19 inch rack mounting
FALSE
-
Air circulator
TRUE
-
With protective cover
TRUE
-
Mounting method
EV002068
-
Built as slide-in ventilator
TRUE
-
Roof ventilator
FALSE
-
With filter
TRUE
-
Number of fans
1
-
Height
336
-
Operating voltage at AC 50 Hz
115
-
Operating voltage at AC 60 Hz
115
-
Width
316
-
Depth
162
-
Noise emission
78
-
Rated power
145
-
Volume flow, freeblowing
983

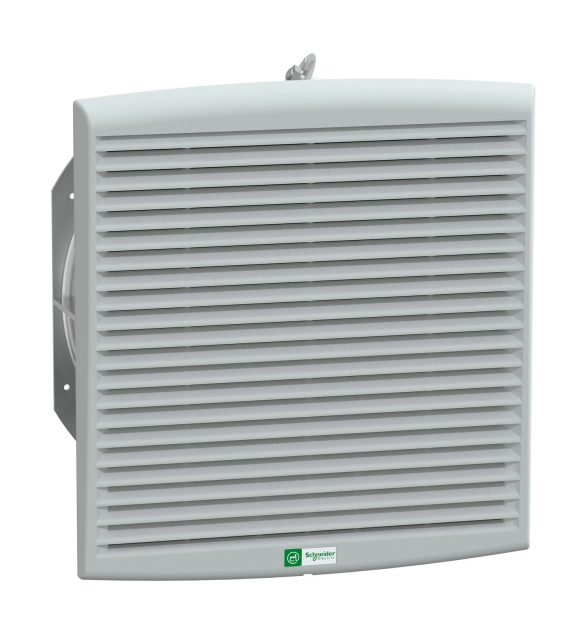

This product is a fan designed to provide reliable and efficient cooling It is made of injected thermoplastic (ASA PC) and is available in grey (RAL 7035) color The fan has a ball bearing type and a maximum pressure of 170 Pa It has a power range of 145 W 50 Hz and 182 W 60 Hz, and a free flow rate of 983 m3/h at 50 Hz and 944 m3/h at 60 Hz It can be used in ambient air temperatures ranging from -15 to 60°C It has a terminal block and comes with a filter, an outlet grille, and two protective grilles on the front and rear surfaces It has an IP54 degree of protection and a noise level of 77-78 dB The cut-out dimensions of the fan are 291 x 291 mm This fan also comes with an anti-insect filter included Protection IP54.
