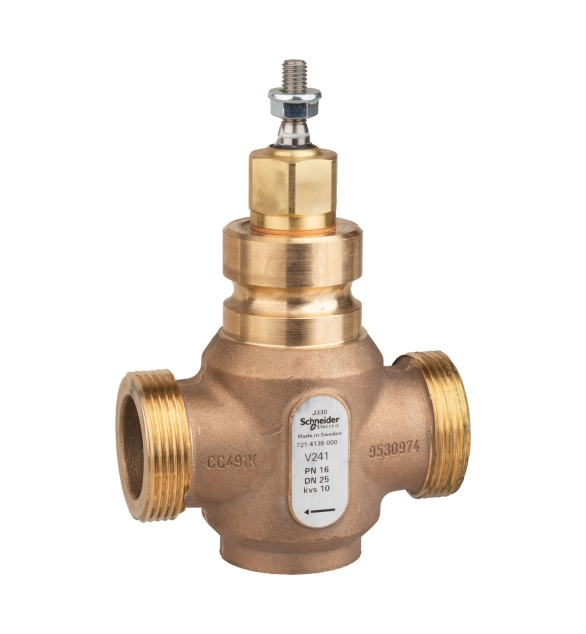

Venta V241 Globe Valve, 2-Way, PN16, G 1-1/2 External Thread, DN25, Kvs 10, Bronze Body, Stainless Trim, Stem Up Closed | Spark & Co
  • 3D
|

СКУ: 7214138000

Venta V241 Globe Valve, 2-Way, PN16, G 1-1/2 External Thread, DN25, Kvs 10, Bronze Body, Stainless Trim, Stem Up Closed

  • Brand
    Schneider Electric
  • Surface protection
    EV006034
  • Material quality
    EV000154
  • Flange compression class
    EV020104
  • Outer pipe diameter all connections
    15
  • Connections
    EV004442
  • Article compression class
    EV020104
  • Max. medium temperature (continuous)
    120
  • Characteristic curve
    EV021552
  • Min. medium temperature (continuous)
    -20
  • Stroke length
    20
  • Kvs value
    1.6
  • Leakage loss of Kvs value
    0.005
  • Housing material
    EV000117
  • Nominal diameter
    EV020209

The V311 is a flanged 3-way globe valve designed for a wide range of heating and cooling applications. The valve uses a crown plug for precise fluid control. Nodular iron construction provides a long life and high corrosion resistance. The crown plug provides precise fluid control with a rangeability of 50:1 and is of a self cleaning design for reliable operation. Valve size: DN25, G External, Flow capacity, Kvs: 1 m³/h. Constructed and flanged to a PN16 pressure class. ΔPm of maximum 400 Kpa. EPDM seals provide a working temperature range of -20 °C to + 120 °C, the soft seat seal ensures a tight close off with no leakage. 20 mm stroke ensures high controllability, Equal percentage flow characteristic ensures high controllability at low opening degrees. Meets the 214/68/EE, article 4.3 of the PED (Pressure Equipment Directive). Flanged to ISO 75-2 (PN16, DN15).
