СКУ: 7212262000
V222 Glove Valve, 2-Way, PN16, Flanged, Balanced plug, DN100, Kvs 130, Cast Iron Body, Stainless plug and seat, Max Glycol 50%, Stem up Closed
-
Brand
Schneider Electric
-
Suitable for cooling
TRUE
-
Surface protection
EV006034
-
Connection 1
EV000106
-
Flange compression class
EV020104
-
Article compression class
EV020104
-
Suitable for process water
TRUE
-
Characteristic curve
EV021552
-
Suitable for tap water
TRUE
-
Automatic flow control
FALSE
-
Max. medium temperature (continuous)
150
-
Leakage loss of Kvs value
0.005
-
Outer pipe diameter connection 1
150
-
Kvs value
350
-
Min. medium temperature (continuous)
-10
-
Material housing
EV000117
-
Material quality
EV020188
-
Stroke length
50
-
Nominal diameter connection 1
EV020219

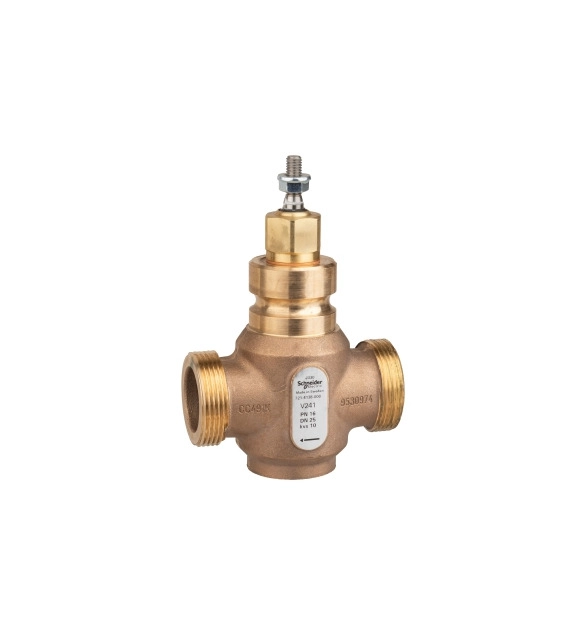

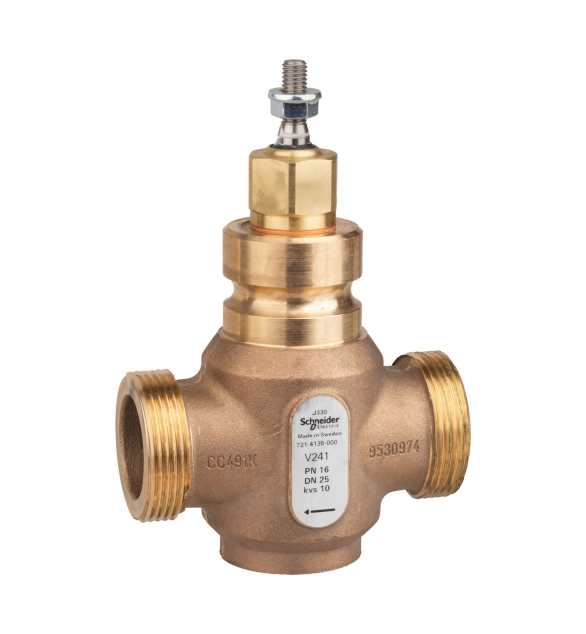

The V241 is an externally threaded 2-way bronze globe valve with stainless steel trim designed for demanding heating and cooling applications. The valve uses a crown plug for precise fluid control with a very high rangeability. Polished Stainless Steel seats ensure a high differential pressure and low leakage. The crown plug provides precise fluid control with a rangeability of 100:1 and is of a self cleaning design for reliable operation. Valve size: DN50, G External, Flow capacity, Kvs: 38 m³/h. Constructed and flanged to a PN16 pressure class. ΔPm of maximum 600 Kpa. EPDM seals provide a working temperature range of -20 °C to + 150 °C, the soft seat seal ensures a tight close off with no leakage. 20 mm stroke ensures high controllability, Equal percentage flow characteristic ensures high controllability at low opening degrees. Meets the 214/68/EE, article 4.3 of the PED (Pressure Equipment Directive). G2-3/4 External (Male) Connection.
